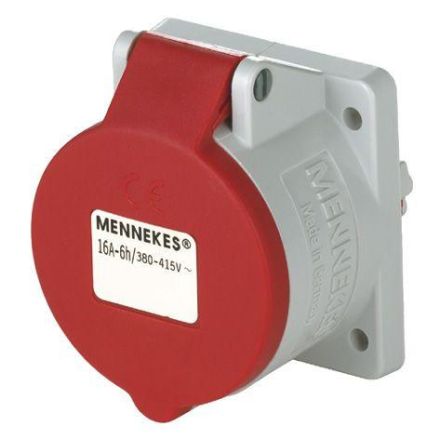

MENNEKES 961 plus 16A 5-pole +Z 6h 400V IP44 CEE panel socket

In stock

SKU: 919573

Price on request

€120.81

€0

Overview

961 plus 16A 5-pin +Z 6h 400V IP44 CEE panel socket Manufacturer article number: 961, Manufacturer article name: plus 16A 5-pin +Z 6h 400V IP44

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	5
Connection technology:	screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	400 V (50+60 Hz) red
Time setting:	6 h
Identification colour:	red
Protection class (IP):	IP44
Material:	Plastic
Military version:	no
Horizontal hole spacing:	60 mm
Hole spacing vertical:	60 mm
Flange dimension horizontal:	75 mm
Flange dimension vertical:	75 mm
Cable entry:	other
Rated voltage:	399 to 400 V
Rated frequency:	50 to 60 Hz
