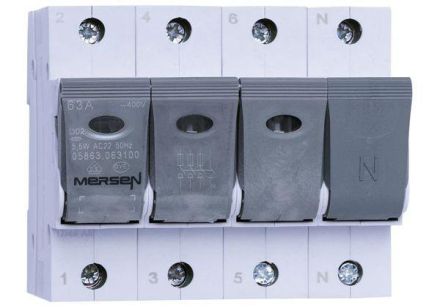

The D0-LINOCUR is a combination of load break switch and Neozed 63A fuse insert, which is equipped with special safety characteristics and sophisticated switch and connection technology. The power output of the Neozed fuse inserts leads to internal heat development in the Linocur device. In order to prevent overheating of the device and unwanted premature aging of the fuse, special design measures have been implemented in this compact device. This is possible thanks to a generously dimensioned, solid copper conductor, a wide area for heat transfer through the screw cap, large-area contact in the base area and special contacts with functional division that dissipate the heat. The D0-LINOCUR has a screw cap with a bayonet, which offers great advantages over other technologies: just a 90 degree turn to screw in or unscrew, defined start and end position of the screw cap, visibly correct end position of the screw cap, time saving when changing the fuse inserts. The device is intended for shipbuilding, can be sealed and mounted on mounting rails in accordance with DIN EN 60715. Adapter inserts and fuses are not included in delivery.
