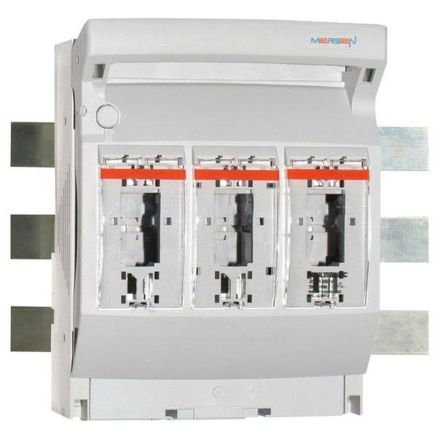

Mersen T229879 1.000.323 Size 1 250A 3-pole NH bus-mounted fuse switch-disconnector

In stock
SKU: 1060908
€233.07
Into a basketIn the basketGo

Overview

The MULTIBLOC 1.RST8 product range includes NH fuse switch disconnectors for 250 A. The products are available in 3-pole versions and are suitable for 40 and 60 mm busbar systems. MULTIBLOC NH fuse switch disconnectors of different sizes can be brought to the same level with suitable covers, which enables a common, flat central cover. MULTIBLOC size 1 is designed for NH fuse inserts according to IEC/EN 60269-2,0636-2, size 1, 250 A. The system is a modular system in which the various products can be optimally combined. MULTIBLOC enables the user to install quickly and easily as well as being highly reliable during installation and maintenance. It is suitable for control panels in commercial and industrial plants, switch boxes in commercial and industrial plants, meter distributors, measuring transformer cabinets and telecom transmission stations.

Property Value
Number of poles: 3
Weight: 3.09
Weight unit: KG
Cable entry: other
Rated continuous current Iu: 250 A
Conditional rated short-circuit current Iq: 80 kA
Protection class (IP), front: IP20
Suitable for fuse links: NH00
Connection type main circuit: Rail connection
Design of the actuating element: Cover handle
Suitable for busbar construction: yes
Max. rated operating voltage Ue at AC: 690 V
Position of the actuating element: front

Characteristics

HAB1.000.323 Size 1 250A 3-pole
ManufacturerMersen
HANT229879
GTIN4027597026707
Connection type main circuitRail connection
Design of the actuating elementLid handle
Conditional rated short-circuit current Iq80kA
Rated continuous current Iu250A
Suitable for busbar constructionYes
Suitable for fuse insertsNH00
Weight3,09
Weight unit kg
Cable entryOther
Max. rated operating voltage Ue at AC690V
Number of poles3
Position of the actuatorIn front
Protection class (IP), frontIP20
