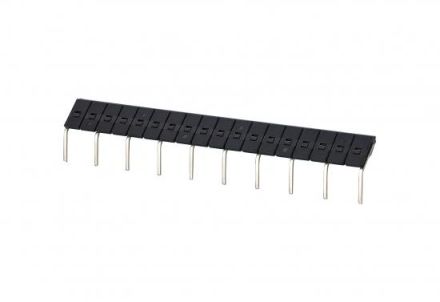

With the through-connection bridge, you can easily connect the connection terminals of the coupling modules of the M4/M6/M8 series without having to wire them individually. The through-connection bridge is 10-pin and available in a pitch of 11.5 mm. The attached end pieces make the comb back finger-safe. // Surface mechanically polished // flame-retardant, self-extinguishing according to UL 94V-2 // Rated voltage 250 V // Rated current 10 A // Number of poles 10 // Pitch 11.5 mm // Upper limit temperature 100 °C // Lower limit temperature -40 °C // Material / wire bridge CuZN 37 F54 // Protection class IP20
