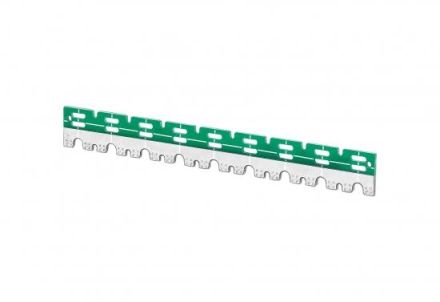

With the switching bridge, you can easily connect the connection terminals A1 and/or A2 of the coupling modules of the F8 and F10 series by simply plugging them in, without having to wire them with individual wires. The switching bridge is 10-pin and available in a grid dimension of 11.5 mm. Surface hot air tinned, lead-free, flame retardant and self-extinguishing in accordance with UL 94V-2 Rated voltage 24 V AC/DC Rated current 2 A Number of poles 10 Pitch 11.5 mm Upper limit temperature 100 °C Lower limit temperature -20 °C Material / circuit board Fr4
