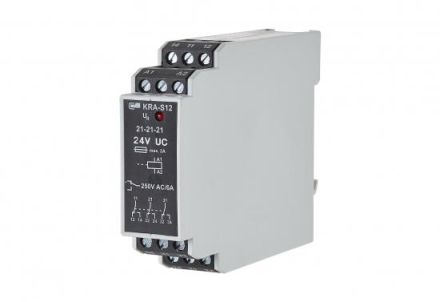

METZ CONNECT 11060913 KRA-S12/21-21-21 3 changeover contacts 24V AC/DC coupling module

In stock

SKU: 769585

Price on request

€26.93

€0

Overview

KRA-S12/21-21-21, 3 changeover contacts, 24 V AC/DC, coupling modules are used for potential separation between logic and load. Connection with screw terminals

Property	Value
Number of contacts as changeover contacts:	3
With positively guided contacts:	no
Type of switching contact:	Single contact
Complete device with base:	yes
With LED display:	yes
Protection class (IP) :	IP20
Width:	11.20
Height:	61.30
Design of the electrical connection:	Screw connection
Depth:	60.00
With removable terminals:	no
Rated current:	6
Rated control supply voltage Us at AC 50 Hz:	24
Rated control supply voltage Us at DC:	24
Voltage type for actuation:	AC/DC
Drive, polarity:	polarized
Switching behavior of the drive:	monostable

Characteristics

Complete device with baseYes

Drive, polarityPolarized

Type of switching contactSingle contact

Switching behavior of the driveMonostable

With positively guided contactsNo

HABKRA-S12/21-21-21 3 changeover contacts 24V AC/DC

Minimal order2 pcs

Manufacturer

HAN11060913

GTIN4250184122555

Number of contacts as changeover3

Design of the electrical connectionScrew connection

Rated control supply voltage Us at AC 50 Hz24

Rated control supply voltage Us at DC24

Width11.20

Height61.30

With LED displayYes

With removable clampsNo

Rated current6

Voltage type for actuationAC/DC

Depth60.00
