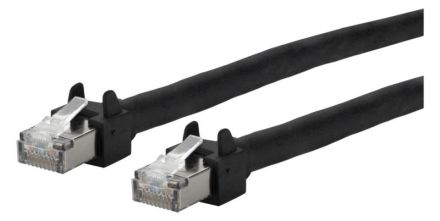

RJ45 patch cable for industrial and outdoor applications, shielded Cat.5e, Class EA RJ45 patch cable, compliance with Class EA Channel-Link according to ISO/IEC 11801-1, DIN EN 50173-1, tested: Channel-Link up to 500 MHz, suitable for 10 GBit/s Ethernet (IEEE 802.3an) up to 40m, particularly suitable for unshielded and shielded Class EA systems, robust and abrasion-resistant cable for industrial applications, such as in mechanical and plant engineering. Also suitable for outdoor installation, compliance with VDE-AR-N 4100:2019-04 (6KV surge voltage test according to DIN EN 60664-1) when installed in meter boxes and electrical distribution boards, cable type: S/UTP 4x2xAWG24/7, cable sheath LSHF (FRNC) PUR, black, the cable is designed for repeated moving applications (drag chain). Tested with a bending radius of 100mm and an acceleration of 4m/s², 3 million cycles were achieved at room temperature. two shielded RJ45 plugs, wiring 1 - 1, UV, oil resistant, remote powering (PoE, PoE plus and UPoE), suitable for IoT, M2M, IoT, HDBaseT, Industry 4.0, multimedia, broadband video, molded anti-kink sleeve, significantly longer service life than standard patch cables, very short anti-kink sleeve
| Property | Value |
| Color: | black |
| Length: | 1 m |
| Connection 1: | RJ45 8(8) |
| Connector 2: | RJ45 8(8) |
| Cable type: | S/UTP |
| Category: | 5E |
| Flame-retardant version: | yes |
| Cable construction: | 4x2 |
| AWG cross-section: | 24 |
| Locking lever protection: | yes |
| Pin assignment: | 1:1 |
| Anti-kink sleeve: | molded |
| Color of anti-kink sleeve: | black |
| Oil-resistant according to EN IEC 60811-404: | yes |
