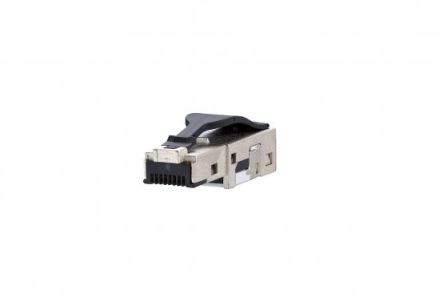

Field-assembly Cat.6 Class E, A connectorCompliance with Class E, A according to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, 8-wire field-assembly RJ45 connector for AWG 22, connection of AWG 26/7 - 22/7, AWG 26/1 - 22/1 possible, solid wire Cu conductor diameter 0.4 - 0.64 mm, stranded wire Cu conductor diameter 0.48 - 0.76 mm, wire diameter up to 1.6 mm, cable sheath from 5.5 to 8.5 mm, consists of only 2 parts, very easy assembly - no special tools required to connect, industrial-grade zinc die-cast housing, with locking hook, variants: T568A, T568B, industrial
