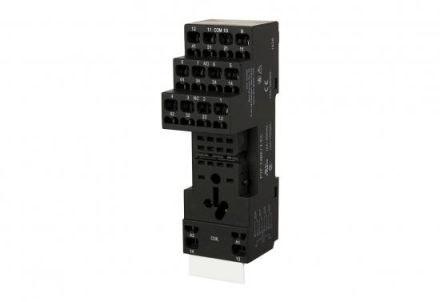

14-pin relay socket with spring-loaded connections for standard industrial relays. All metal parts are concealed to prevent contact over large areas. The relay socket is suitable for the MC274 industrial relay. Electronic modules such as LED or RC modules can optionally be plugged into the socket. Retaining bracket optional integrated quick fastening for DIN rail Terminal designation according to EN 50022 separate input and output Nominal current 10 A Nominal voltage 300 V AC Dielectric strength coil/contact 2500 V Insulation group 0110b C250 Contact protection VBG 4 Connection cross-section solid wire 2 x 0.2 - 1.5 mm2 Stranded wire with wire end ferrule 2 x 0.2 &ndash 1.5 mm2 Stripping length 7 mm Extraction force (contact) min. 35 N Housing dimensions W x H x D 31 x 95.35 x 42.65 mm Weight 88 g Operating temperature range 0 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class IP20
