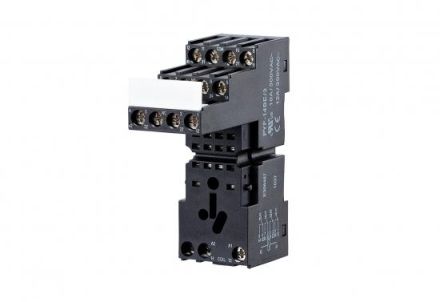

14-pin relay socket for standard industrial relays with screw connections. All metal parts are concealed to prevent contact with large surfaces. The relay socket is suitable for R274. Retaining bracket optional integrated quick fastening for DIN rail Terminal designation according to EN 50022 separate input and output Nominal current 10 A Nominal voltage 300 V AC Dielectric strength coil/contact 4000 V / 50 Hz / 1min Insulation group 0110b C250 Ambient temperature +70° C Contact protection VBG 4 Connection cross-section solid wire 2 x 2.5 mm2 Stranded wire with wire end ferrule 2 x 1.5 mm2 Screw torque max. 0.8 Nm Housing dimensions W x H x D 27.2 x 75 x 61.2 mm Weight 63 g Operating temperature range 0 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class IP20
