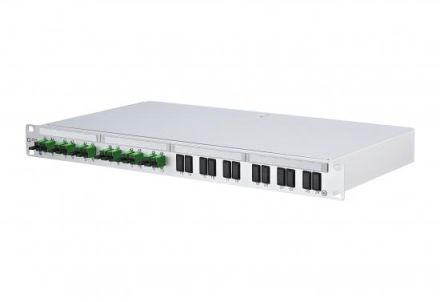

METZ CONNECT 1502005912-E OpDAT PF VIK 12xE2000 APC green OS2 grey patch panel

In stock
SKU: 769506
€204.78
Into a basketIn the basketGo

Overview

19 inch, 1U fiber optic patch panel for permanent installation, equipped with E2000 couplings, prepared for the installation of pre-assembled installation cables (OpDAT VIK), lightweight construction with front panel (gray or black) and housing made of aluminum, unused cutouts closed with blind plugs, removable front panel for easy adapter assembly, in the rear panel there are 10 cable entry options for 4xPG13, 5, 2x PG16/M20 or 2x PG21/M25 screw connections and for 2 pre-assembled installation cables (VIK), service-friendly, snap-on cover, viewing window for enclosed label inserts, variants: equipped with 12 or 24 E2000 couplings blue (OS2), lime green (OM5) or 12 or 24 E2000 APC couplings green (OS2)

Property Value
Connector type outside: E2000
Connector type inside: E2000
Color: gray
RAL number: 7035
Mounting type: 482.6 mm (19 inch) installation
Number of height units (HE): 1
Height: 44.45
Width: 482.60
Depth: 262.00
Suitable for number of couplings/adapters: 24
With number of couplings/adapters: 12
With front panel: yes
With housing: yes
With pigtails: no
Fiber type: Singlemode
Fiber class: OS2
APC version: yes

Characteristics

HABOpDAT PF VIK 12xE2000 APC green OS2 grey
ManufacturerMETZ CONNECT
HAN1502005912-E
GTIN4251394600505
Width482.60
ColorGray
Height44.45
Mounting type482.6 mm (19 inch) installation
RAL number7035
Depth262.00
METZ CONNECT 1502005912-E OpDAT PF VIK 12xE2000 APC green OS2 grey patch panel
METZ CONNECT 1502005912-E OpDAT PF VIK 12xE2000 APC green OS2 grey patch panel
€204.78
Into a basketIn the basketGo
