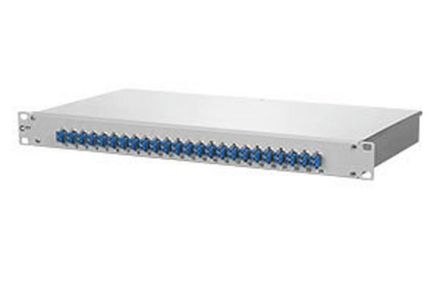

METZ CONNECT 1502507424-E OpDAT fix VIK 24xLC-D OS2 patch panel

In stock
SKU: 1061513
€145.75
Into a basketIn the basketGo

Overview

19 inch, 1U fiber optic patch panel for permanent installation, equipped with LC-D couplings, prepared for the installation of pre-assembled installation cables (OpDAT VIK), lightweight aluminum construction with sheet steel front panel (gray RAL 7035), unused cutouts closed with blind plugs, removable front panel for easy coupling installation, service-friendly, screwed cover, several cable entry options on the rear (attachment with PG13.5, PG16 and PG21 or M20 and M25), tool-free attachment of pre-assembled installation cables (OpDAT VIK) in a U-cutout

Property Value
Width: 482.6 mm
Weight: 1.98
Weight unit: KG
Mounting type: 482.6 mm (19 inch) installation
Color: gray
Height: 44.45 mm
Depth: 244 mm
Fiber type: Singlemode
RAL number: 7035
With housing: yes
Suitable for number of couplings/adapters: 24
With front panel: yes
Number of height units (HE): 1
With number of couplings/adapters: 24
Fiber class: OS2
Outside connector type: LC-Duplex
Inside connector type: LC-Duplex
Short description: OpDAT fix patch panel VIK 24xLC-D OS2

Characteristics

Number of height units (HE)1
HABOpDAT fix VIK 24xLC-D OS2
ManufacturerMETZ CONNECT
HAN1502507424-E
GTIN4251394603858
Width482.6 mm
ColorGray
Weight1,98
Weight unit kg
Height44.45 mm
Short descriptionOpDAT fix patch panel VIK 24xLC-D OS2
Mounting type482.6 mm (19 inch) installation
RAL number7035
Depth244 mm
