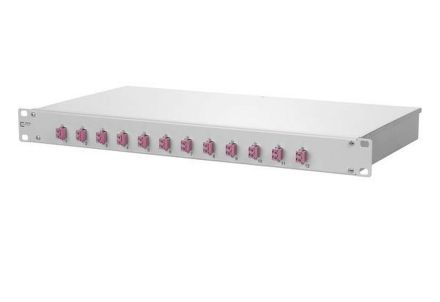

METZ CONNECT 1502577512-F OpDAT fix splice 12xLC-D OM4 patch panel

In stock
SKU: 1061521
€212.83
Into a basketIn the basketGo

Overview

19 inch, 1U fiber optic patch panel for permanent installation, equipped with LC-D couplings and LC pigtails, pigtails with compact fiber ø 0.9 mm, 12 colors, secondary and primary coating the same color, length 2.0 m, pigtails inserted and set off in standard splice cassette with crimp splice holders, pigtails cleaned and inserted into couplings, lightweight aluminum construction with sheet steel front panel (gray or black), unused cutouts closed with blind plugs, removable front panel for easy adapter assembly, service-friendly, screwed cover, several cable entry options on the back (attachment with PG13.5, PG16 and PG21 or M20 and M25), an M20 cable entry is included

Property Value
Width: 482.6 mm
Weight: 1.98
Weight unit: KG
Mounting type: 482.6 mm (19 inch) installation
Color: gray
Height: 44.45 mm
Depth: 244 mm
Fiber type: Multimode 50/125
RAL number: 7035
With housing: yes
With pigtails: yes
Suitable for number Couplings/adapters: 12
With front panel: yes
Number of height units (HE): 1
With number of couplings/adapters: 12
Fiber class: OM4
Connector type outside: LC-Duplex
Connector type inside: LC-Duplex
Short description: OpDAT fix patch panel splice 12xLC-D OM4

Characteristics

Number of height units (HE)1
HABOpDAT fix splice 12xLC-D OM4
ManufacturerMETZ CONNECT
HAN1502577512-F
GTIN4251122186639
Width482.6 mm
ColorGray
Weight1,98
Weight unit kg
Height44.45 mm
Short descriptionOpDAT fix patch panel splice 12xLC-D OM4
Mounting type482.6 mm (19 inch) installation
RAL number7035
Depth244 mm
