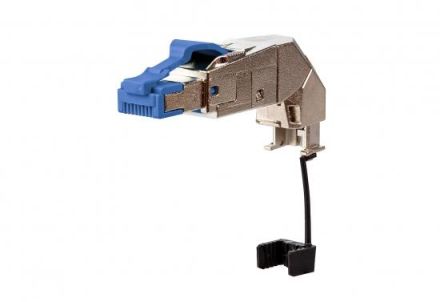

Field-assembly RJ45 connector Cat.8.1/Class I (up to 2000 MHz), fully shielded and multiport capable, variable cable feed, freely selectable (360°), extremely simple assembly - can be connected without special tools, wire connection stranded conductor AWG 27/7 - 22/7, wire diameter 0.43 - 0.76 mm, wire connection tight-core AWG 26/1 - 22/1, wire diameter 0.4 - 0.64 mm, transmission properties Cat.8.1 according to ISO/IEC 11801 Ed.3:2017 (up to 2000 MHz), compliance with Class I according to ISO/IEC 11801 Ed.3:2017, DIN EN 50173-1:2018, 40GBASE-T for 40 Gbit Ethernet (IEEE 802.3bq), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT suitable, protection class IP20, suitable for cable sheath diameters from 5.5 to 10.5 mm, 2-part, industrial-grade housing made of die-cast zinc, strain relief via snap-in clip directly on the charging piece, protected locking hook, reconnectable
