METZ CONNECT 6xLC-D OM3 ceramic aqua consolidation point splice, 1503057706-E

In stock
SKU: 483495
€189.19
Into a basketIn the basketGo

Overview

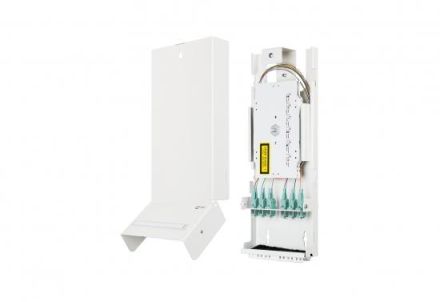

Consolidation point splice equipped, equipped with LC-D couplings, pigtails and splice cassette with crimp splice protection holder, for splicing loose tube cables, wall housing made of sheet steel, powder-coated (white, RAL 9010), patch area with hinged and removable cover including labeling field, strain relief option for patch cables, unequipped openings closed with blind plugs, cable management area with separate cover, cable entry option on the back to accommodate a PG16 screw connection, wall mounting accessories included, variants: equipped with 6 LC-D couplings and pigtails each blue (OS2), lime green (OM5), violet (OM4), aqua (OM3) or 6 LC-D APC couplings and pigtails green (OS2)

Property Value
Outside connector type: LC-Duplex
Inside connector type: LC-Duplex
Color: white
RAL number: 9010
Mounting type: Wall mounting
Height: 339.00
Width: 128.20
Depth: 42.50
Suitable for number of couplings/adapters: 6
With number of couplings/adapters: 6
With front panel: yes
With housing: yes
With pigtails: yes
Fiber type: Multimode 50/125
Fiber class: OM3
APC version: no

Characteristics

HAB6xLC-D OM3 Ceramic Aqua
ManufacturerMETZ CONNECT
HAN1503057706-E
GTIN4251122198939
Width128.20
ColorWhite
Height339.00
Mounting typeWall mounting
RAL number9010
Depth42.50
METZ CONNECT 6xLC-D OM3 ceramic aqua consolidation point splice, 1503057706-E
METZ CONNECT 6xLC-D OM3 ceramic aqua consolidation point splice, 1503057706-E
€189.19
