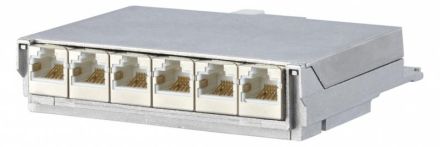

6-way module housing made of die-cast zinc for installation in DIN rail adapters, AP empty housings or 1U 6-way module carriers, GHMT Cat.6 12C-de-embedded certified, compliance with class E, A according to ISO/IEC 11801, DIN EN 50173-1 tested: link up to 500 MHz, suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE and 4PPoE) and HDBaseT, the wire pairs can be led to the LSA terminal without unravelling the stranding, connection of the 2- to 4-pair data lines to LSA insulation displacement terminals (AWG 22-24). With marking of the wire colors according to TIA/EIA 568A, additional strain relief possible using cable ties, including 30 cm grounding cable, grounding bolt M6x10 with nut and toothed washer
