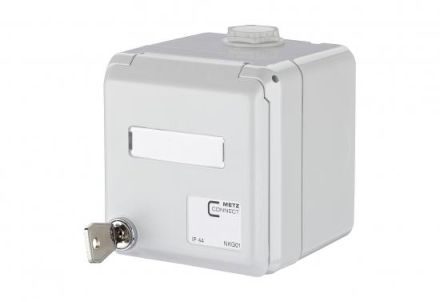

METZ CONNECT E-DAT IP44SG grey keyed alike surface-mounted housing lockable, 1309460003-I

In stock
SKU: 482987
€66.88
Into a basketIn the basketGo

Overview

Lockable surface-mounted IP44 box, with two keys with a same-key lock (same locks and keys), lid closes completely, even with patch cables plugged in, for two individual modules in modular design (not suitable for OpDAT modules), ball-proof according to DIN 18032, can be operated with commercially available patch cables, clearly visible labeling field, lower part of the housing can be rotated 180 degrees, thus cable feed from above and below is possible, with space to store necessary cable reserves, color gray

Property Value
Surface-mounted: yes
Flush-mounted: yes
Duct installation: yes
Floor tank/underfloor installation: no
Fastening type: screws
Composition: Base element with complete housing
With bushings/couplings: no
Suitable for number of bushings/couplings: 2
Color: gray
RAL number: 7035
With text field: yes
Design capable: no
Separate cable strain relief: no
Outlet direction: slanted
With dust protection: yes
Protection class (IP): IP44
Mechanical coding: no
Color coding: no
Device width: 90
Device height: 93
Device depth: 90

Characteristics

With text fieldYes
HABE-DAT IP44SG grey keyed alike
ManufacturerMETZ CONNECT
HAN1309460003-I
GTIN4250184117162
Outlet directionAslant
Mounting typeScrew
ColorGray
Suitable for number of sockets/couplings2
Device width90
Device height93
Device depth90
With bushings/couplingsNo
With dust protectionYes
RAL number7035
CompilationBase element with complete housing
