METZ CONNECT E2000 0.9mm STBOS2 2m 12F/890842Q1MO20 LWL fiber pigtail OpDAT, 150Q1MO0020E

In stock
SKU: 494462
€17.70
Into a basketIn the basketGo

Overview

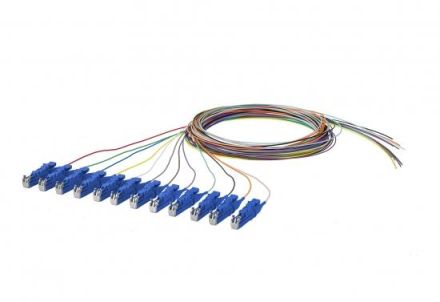

Single-mode fiber OS2, E9/125 m, bend-insensitive in accordance with IEC 60793-2-50 type B6_a and B6_b and G.657.A2 and B2, compatible with G.652.D, compact buffered fiber 0.9 mm, length 2.0 m. Color sequence in the set in accordance with IEC 60304: red, green, blue, yellow, white, gray, brown, violet, turquoise, black, orange, pink. Secondary and primary coating the same color. Connector mounted on one side, all types in accordance with IEC 61754 with test report, insertion loss and return loss 100% tested. Packaging unit 12 pieces: order quantity refers to 1 piece and must always be a multiple of 12. Example: 24x150Q1CO0020E = 2 packaging units 12 pieces Variants with UPC cut: LC, SC, ST, E2000 and other connector types on request Variants with APC cut: LC, SC, E2000 and other connector types on request

Property Value
Fiber type: Singlemode
Category: OS2
Type: Wire pigtail
Wire type: Compact wire
Length: 2
Connector type: E2000
APC version: no
Color: set with multiple colors
Kink relief sleeve: plugged in

Characteristics

CategoryOS2
Connector typeE2000
HABE2000 0.9mm STBOS2 2m 12F/890842Q1MO20
Minimal order12 pcs
ManufacturerMETZ CONNECT
HAN150Q1MO0020E
GTIN4250184149767
Length2
TypeWire pigtail
