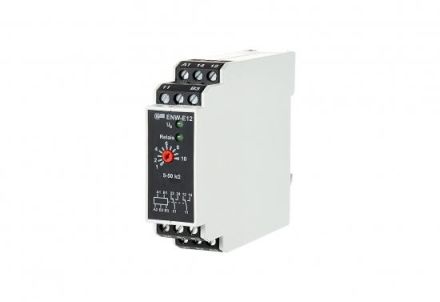

The level monitor is used to monitor the level or leakage of all conductive, non-flammable media. The response point can be set using a proportional potentiometer. As a monitor, the device works with an electrode (EO) and the ground connection (EM), e.g. for minimum or maximum messages, as overflow or dry-run protection for submersible pumps. If the level surface is unstable, an additional electrode (EU) is recommended. As a two-point controller, the device uses the electrodes EO, EU and ground connection EM to control pumps or valves for the automatic filling or emptying of containers. A container wall that conducts the medium can also be used as the ground connection. When connecting 2 electrodes, connections B2 and B3 must be bridged! Variants: 230 V AC or 24 V AC Operating voltage 230 V AC or 24 V AC Response sensitivity 5 to 50 kOhm, adjustable Input up to 3 electrodes Input / electrode voltage 12 V Output / contact 2 changeover contacts (DPDT) Output / switching voltage 250 V Output / continuous current 6 A Output / total current 8 A across all contacts Mechanical life 3x107 switching cycles Electrical life 2x105 switching cycles Switching frequency 600 switching cycles/h Display LED green Dimensions W x H x D 22.5 x 75 x 95 mm Weight 300 g Operating temperature range 0 °C to +55 °C Storage temperature range -20 °C to +70 °C Protection class housing / terminals IP40 / IP20
