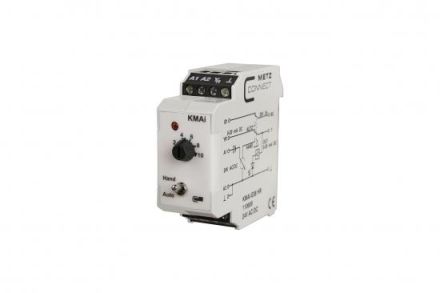

The analog value transmitter is used for manual setting of the manipulated variable, e.g. for mixing flaps, valve positions, temperature values, etc. The module can be controlled by two operating modes, which are set using the two-stage switch (manual, auto) on the front. The switch position is reported back via the external control contact terminals B1 and B2. Switch position InchManualInch The manipulated variable can be set using the potentiometer on the front. The output signal 0 to 20mA is available at terminal Y. The current flow at input YR is not interrupted. Switch position InchAutoInch The input current (YR) is transferred to the manipulated variable output Y with a tolerance of 5% (full scale value). Setpoint generator manual control level with feedback LED brightness proportional to the manipulated variable Input / operating voltage 24 V AC/DC Input / current consumption AC 50 mA Input / current consumption DC 30 mA Input / current 0 to 20 mA DC Output / current 0 to 20 mA DC Display LED red Dimensions W x H x D 22.5 x 61.3 x 60 mm Weight 70 g Operating temperature range -10 °C to +50 °C Storage temperature range -25 °C to +70 °C Protection class housing / terminals IP40 / IP20
