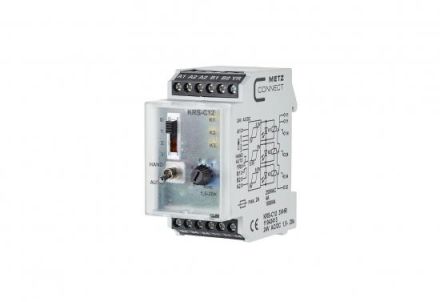

The threshold switch is designed for three-stage motor control. Three LEDs are integrated in the device for visual checking of the switching status. Control via just one analog input Manual control level with feedback Integrated time relay 3 changeover contacts (3PDT) positively locked Connection with screw terminals Operating voltage 24 V AC/DC Current consumption 24 V AC 60 mA Current consumption 24 V DC 22 mA Output / voltage 250 V AC Output / contact 3 changeover contacts (3PDT) Output / contact material AgNi Output / continuous current 4 A Output / switching frequency 360 switching cycles / h Mechanical service life 1 x 107 switching cycles Electrical service life 1 x 105 switching cycles Display LED yellow Dimensions W x H x D 35 x 69.3 x 60 mm Weight 95 g Operating temperature range -10 °C to +50 °C Storage temperature range -25 °C to +70 °C Protection class housing / terminals IP40 / IP20
