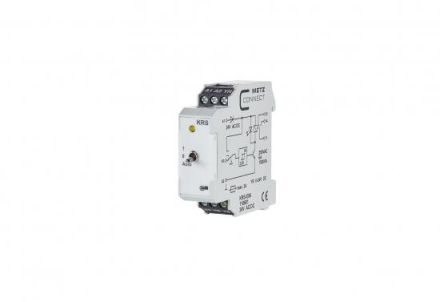

The threshold switch is used to switch units, pumps, fans, burners, etc. As soon as the input voltage reaches the switching threshold, the relay switches on. If the input voltage falls below the switch-off threshold, the relay switches off again. With manual control level Connection with screw terminals Operating voltage 24 V AC/DC Current consumption 24 V AC 80 mA Current consumption 24 V DC 16 mA Threshold voltage 3.0 V DC Switch-off voltage 2.5 V DC Output / voltage 250 V AC Output / contact 1 changeover contact (SPDT) Output / contact material AgNi Output / continuous current 6 A Output / switching frequency 1200 switching cycles / h Mechanical service life 1 x 107 switching cycles Electrical service life 1 x 105 switching cycles Display LED yellow Dimensions W x H x D 17.5 x 61.3 x 60 mm Weight 70 g Operating temperature range -10 °C to +50 °C Storage temperature range -25 °C to +70 °C Protection class housing / terminals IP40 / IP20
