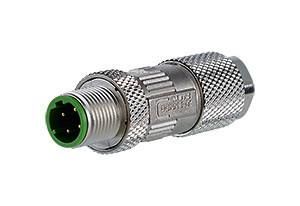

Field-assembly M12 connector, Cat.5, D-coded based on DIN EN 61076-2-101, for 4-wire cable connection, connection of AWG 26/7 - 22/7, AWG 24/1 - 22/1 possible, solid wire Cu conductor diameter 0.4 - 0.64 mm, stranded wire Cu conductor diameter 0.48 - 0.76 mm, wire diameter up to 1.6 mm, cable sheath from 5.0 to 9.7 mm, consists of only 2 parts, very simple assembly - can be connected without special tools, industrial-grade zinc die-cast housing, suitable for applications in the rail industry according to data sheet
