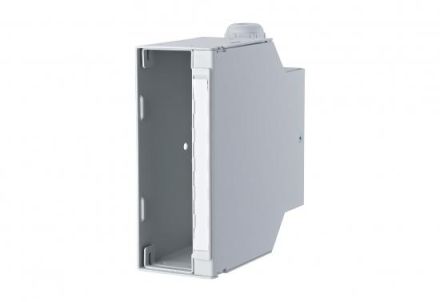

METZ CONNECT OpDAT REGpro without splice cassette housing, 15024A10-E

In stock
SKU: 483492
€84.30
Into a basketIn the basketGo

Overview

Splice distributor for mounting rail TH35 without front panel, grey housing, with or without splice cassette with crimp splice holder (CSH) for up to 12 splices, the installation of two shrink splice holders (SSH) is possible on the splice tray, with fiber reservoir, freely labelable label strip, fastening on the mounting rail via very robust mounting rail holder, various installation variants on the mounting rail possible, for various front panels 3HE/7TE, cable feed from above or below, straight or diagonal, with M20 screw connection (up to 2 possible), 50 mm wide, 128 mm high, 132.5 mm deep (from mounting rail, without couplings), introduction of pre-assembled cables possible, one cable entry M20 with strain relief included in delivery, fastening of the housing cover using just one screw, variants: with splice cassette, without splice cassette, Attention: Not all on the market can be Available front panels 3HE/7TE can be used for the OpDAT REGpro. When using pre-assembled cables, the version without a splice cassette is recommended.

Property Value
Color: gray
Mounting type: DIN rail
Height: 131.7
Width: 50
Depth: 129
With front panel: no
With housing: yes
With pigtails: no

Characteristics

HABOpDAT REGpro without splice cassette
ManufacturerMETZ CONNECT
HAN15024A10-E
GTIN4250184130376
Width50
ColorGray
Height131.7
Mounting typeDIN rail
Depth129
