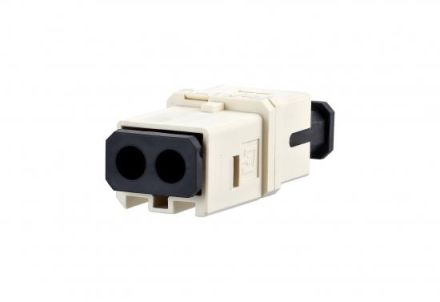

METZ CONNECT OpDAT SC-RJ/SC-Duplex MM socket insert LWL IP 67 Industry, 1402100820MI

In stock
SKU: 483062
€14.63
Into a basketIn the basketGo

Overview

SC-RJ/2SC coupling, slotted ceramic guide sleeve for single-mode applications, slotted metal guide sleeve (Ph-Br) for multi-mode applications, conformity with the corresponding IEC framework specifications regarding test specifications and plug compatibility on one side to plug type SC according to IEC 61754-4, IEC 60874-14 and SC-RJ according to IEC 61745-24, EN 50377-6-1, compliance with EN 50173-1:2011-09 or ISO/IEC 24702 regarding the limits for insertion loss, flame-retardant and halogen-free plastic housing, flame-retardant and halogen-free dust cap, in flange or junction box of the Var. 1 and 4 can be integrated, for variant 14 only sets are available, service life: at least 500 mating cycles, operating temperature -40°C to +70°C, variants: blue (SM), beige (MM)

Property Value
Suitable for fiber type: Multimode
Connector type connection 1: SC-RJ
Connector type connection 2: SC-RJ
Housing material: Plastic
Sleeve material: Ceramic
Mounting type: snap-in
Color: beige
APC version: no
UPC version: no

Characteristics

HABOpDAT SC-RJ/SC-Duplex MM
ManufacturerMETZ CONNECT
HAN1402100820MI
GTIN4250184114284
Mounting typeSnap into place
ColorBeige
Housing materialPlastic
METZ CONNECT OpDAT SC-RJ/SC-Duplex MM socket insert LWL IP 67 Industry, 1402100820MI
METZ CONNECT OpDAT SC-RJ/SC-Duplex MM socket insert LWL IP 67 Industry, 1402100820MI
€14.63
Into a basketIn the basketGo
