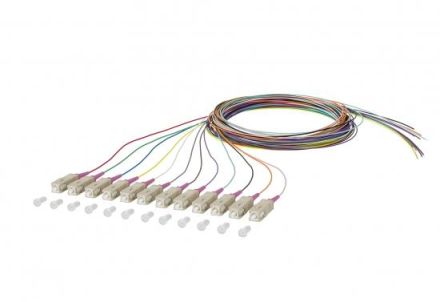

METZ CONNECT SC-PC OM4 0.9mm 12 colors 2m fiber optic pigtail OpDAT, 150N1CO0020E

In stock
SKU: 494452
€4.57
Into a basketIn the basketGo

Overview

Multimode fiber OM4 G50/125 m, bend-insensitive according to IEC 60793-2-10 Type A1a.3 compact buffered cable 0.9 mm, length 2.0 m Color sequence in set according to IEC 60304: red, green, blue, yellow, white, gray, brown, violet, turquoise, black, orange, pink. Secondary and primary coating the same color Connector mounted on one side, all types according to IEC 61754 with test report, insertion loss and return loss 100% tested Packaging unit 12 pieces: Order quantity refers to 1 piece and must always be a multiple of 12. Example: 24x150N1CO0020E = 2 packaging units 12 pieces Variants with PC cut: LC, SC, ST, E2000 and other connector types on request

Property Value
Fiber type: Multimode 50/125
Category: OM4
Type: Wire pigtail
Wire type: Compact wire
Length: 2
Connector type: SC
APC version: no
Color: set with multiple colors
Kink relief sleeve: plugged in

Characteristics

CategoryOM4
Connector typeSC
HABSC-PC OM4 0.9mm 12 colors 2m
Minimal order12 pcs
ManufacturerMETZ CONNECT
HAN150N1CO0020E
GTIN4250184149781
Length2
TypeWire pigtail
