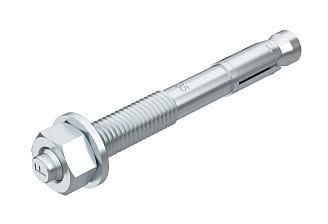

OBO Bettermann BZ 12-160/255 bolt anchor BZ, 3498358

In stock
SKU: 509524
€9.46
Into a basketIn the basketGo

Overview

Bolt anchor BZ for anchoring medium to heavy loads, both in cracked and non-cracked concrete. It combines high permissible loads with small edge and axis distances. European Technical Approval ETA-99/0010, including characteristic values under fire exposure up to fire resistance duration R 120. Shock approval from the Federal Office for Civil Protection, Bern, Switzerland.

Property Value
Length: 255 mm
Drill hole diameter: 12 mm
Thread size (metric): 12
Thread type: metric
Anchor material: steel
Surface protection Anchor: galvanized/electrolytically galvanized
Sleeve material: steel
Sleeve surface protection: galvanized/electrolytically galvanized
Min. drill hole depth: 90 mm
Max. clamp thickness: 160 mm

Characteristics

Thread size (metric)12
HABBZ12-160/255
Minimal order20 pcs
ManufacturerOBO Bettermann
HAN3498358
GTIN4012196571482
Thread typeMetric
Length255 mm
