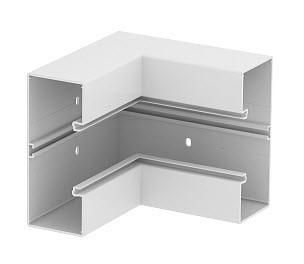

OBO Bettermann GKH-I70170RW halogen-free pure white internal corner, 6114360

In stock
SKU: 508801
€64.31
Into a basketIn the basketGo

Overview

Inner corner made of halogen-free PC/ABS for changing the direction of the GKH device installation channels.

Property Value
Depth: 70 mm
Width: 170 mm
Color: white
RAL number: 9010
Design: Lower part
Shape: symmetrical
Number of upper parts: 1
Top width 1: 76.5 mm
Angle: 90 °
Material: Plastic
Material quality: other
Halogen-free: yes
With protective film: yes
With channel connector: no
Mounting holes in the base: yes
Mounting type of the upper parts: internal
With cable retaining clip: no
Antibacterial treatment: no
Protection class (IP): IP30
Impact resistance: IK08
Operating temperature: -15 to 90 °C

Characteristics

HABGKH-I70170RW halogen-free pure white
ManufacturerOBO Bettermann
HAN6114360
GTIN4012196451296
Antibacterial treatmentNo
VersionBottom part
Width170 mm
Operating temperature-15 to 90 °C
ColorWhite
ShapeSymmetrical
Halogen freeYes
RAL number9010
Impact resistanceIK08
IP protection)IP30
Depth70 mm
MaterialPlastic
Material qualityOther
