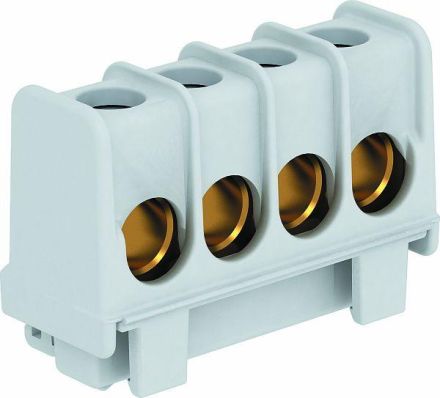

OBO Bettermann KL-T 16-35 35qmm light grey terminal strip, 2016195

In stock

SKU: 504154

Price on request

€28.85

€0

Overview

Terminals brass, screws steel, galvanized and transparently passivated, nominal cross section 16 35 mm, nominal voltage 400 V, 1-pole, with socket terminals max. connectable conductors per terminal point max. 4x35mm, 4x25mm, 8x16mm or 12x10mm.

Property	Value
Number of poles:	1
Rated voltage:	400 V
Material of the insulating body:	Thermoplastic
Rated current In:	125 A
Color:	gray
QS single-wire:	10 to 35 mm²
Mounting type:	other
Design of electrical connection 1:	screw connection
Number of terminal points per pole:	1
End plate required:	no
Transparent:	no
Width:	24 mm
Height:	36 mm
Depth:	52 mm
