OBO Bettermann UZD165220/250-3 underfloor 410x367x165mm junction box, 7410052

In stock
SKU: 508508
€200
Into a basketIn the basketGo

Overview

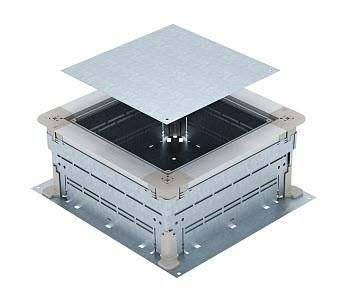

Underfloor junction and junction box for screed-covered underfloor installation systems with internal, stepless height adjustment from 165 to 220 mm. Underfloor box can be decoupled after screed has been laid. Side walls made of metal with prefabricated inlet openings for underfloor installation ducts. With protective assembly cover.

Property Value
Suitable for screed-flush, closed underfloor duct: no
Suitable for screed-covered underfloor duct: yes
Duct width: 190 to 250 mm
Duct height: 28 to 48 mm
Min. Screed height: 165 mm
Side wall material: steel
Nominal size: 250 mm
Leveling range: 165 to 220 mm
Installation opening for floor tank: no
Suitable for seal installation: yes
Bottom plate: yes

Characteristics

HABUZD165220/250-3 Underfloor 410x367x165mm
ManufacturerOBO Bettermann
HAN7410052
GTIN4012195431688
