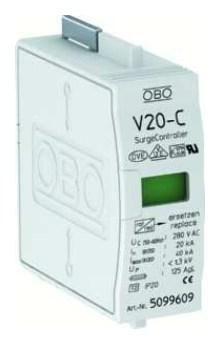

OBO Bettermann V 20-C/0-280 280V SurgeController surge arrester upper part, 5099609

OBO Bettermann V 20-C/0-280 280V SurgeController surge arrester upper part, 5099609

In stock

SKU: 507977

Price on request

€38.85

€0

Into a basketIn the basketGo

Overview

SurgeController upper part Plug-in upper part, upper part can be separated from the lower part without tools, including thermal and dynamic separation device and optical defect indicator, high current conductivity with a long service life

Property	Value
Protection level:	1.3 kV
Nominal discharge current (8/20):	20 kA
Highest continuous voltage AC:	280 V
Highest continuous voltage DC:	350 V
Nominal voltage AC:	230 V
Mounting type:	on base element
Size:	1 TE
Signaling on the device:	optical
Max. conductor cross-section rigid (single/multi-wire):	35 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Max. discharge current (8/20):	40 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)35 mm²

Protection level1.3 kV

Highest continuous voltage DC350 V

Max. discharge current (8/20)40 kA

Integrated backup fuseNo

HABV 20-C/0-280 280V Surge Controller

Manufacturer

HAN5099609

GTIN4012195396918

Size1 TE

Highest continuous voltage AC280V

Mounting typeOn base element

Nominal discharge current (8/20)20kA

Nominal voltage AC230V

IP protection)IP20

Signaling on the deviceOptical

OBO Bettermann V 20-C/0-280 280V SurgeController surge arrester upper part, 5099609

OBO Bettermann V 20-C/0-280 280V SurgeController surge arrester upper part, 5099609

Price on request

€38.85

€0

Into a basketIn the basketGo
