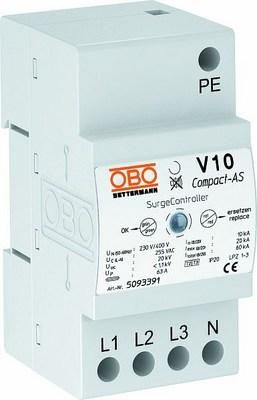

OBO Bettermann V10 Compact-AS 255V with acoustic signal surge arrester, 5093391

In stock
SKU: 501059
€160.68
Into a basketIn the basketGo

Overview

V10 Compact Compact surge protection for 230/400V networks with acoustic signaling. SPD according to EN 61643-11: Type 2+3 Can be used in 230/400V TT and TN networks High-performance varistor technology with 10kA (max. 20kA) discharge current per pole. Due to its small size, it is suitable for surge protection in sub-distribution boards and compact cabinets. With optical and acoustic function and defect display. 5 year warranty

Property Value
Protection level: 1.1 kV
Nominal discharge current (8/20): 10 kA
Highest continuous voltage AC: 255 V
Nominal voltage AC: 230 V
Mounting type: DIN rail TH35
Size: other
Signaling on the device: acoustic and optical
Max. conductor cross-section, rigid (single/multi-wire): 10 mm²
Integrated back-up fuse: no
Protection class (IP): IP20
Network type TN: yes
Network type TN-CS: yes
Network type TN-S: yes
Network type TT: yes
Max. Discharge current (8/20): 20 kA

Characteristics

Max. conductor cross-section rigid (single/multi-wire)10 mm²
Protection level1.1 kV
Network form TTYes
Network type TN-SYes
Max. discharge current (8/20)20 kA
Network form TNYes
Network type TN-C-SYes
Integrated backup fuseNo
HABV10 Compact-AS 255V with acoustic signal
ManufacturerOBO Bettermann
HAN5093391
GTIN4012195299448
SizeOther
Highest continuous voltage AC255V
Mounting typeDIN rail TH35
Nominal discharge current (8/20)10kA
Nominal voltage AC230V
IP protection)IP20
Signaling on the deviceAcoustically and visually
OBO Bettermann V10 Compact-AS 255V with acoustic signal surge arrester, 5093391
