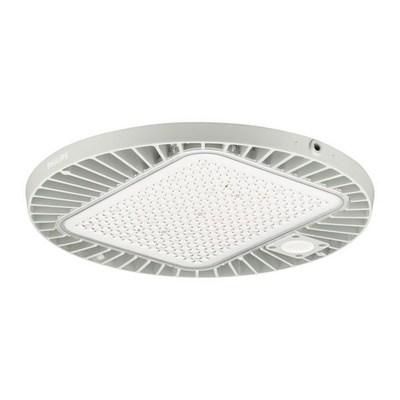

Philips 31717500 BY120P G3 LED105S/865 PIR WB GR LED high bay luminaire

Philips 31717500 BY120P G3 LED105S/865 PIR WB GR LED high bay luminaire

In stock

SKU: 734178

Price on request

€532.07

€0

Overview

After the successful launch of the CoreLine LED hall light in 2013, it has now been completely redesigned in its 3rd generation. The further improvement in efficiency enables a further reduction in operating costs. The light offers customers all the advantages of LED lighting - 'fresh' light quality, a very long service life and reduced power consumption and maintenance effort - from a proven manufacturer. At the same time, it offers clear advantages for the installer: The compact, robust CoreLine LED hall light can be used both in new systems and as an optimal replacement in many renovation projects instead of existing conventional hall lights with 250W/400W high-pressure discharge lamps. The electrical connection is uncomplicated: the light does not need to be opened for installation or maintenance work. In addition, it is up to 60% lighter than other LED and conventional hall lights and is therefore very easy to install.

Property	Value
Suitable for number of bulbs:	1
Bulb:	LED not replaceable
Color temperature:	4000 K
Rated luminous flux according to IEC 62722-2-1:	10500 lm
Length:	379 mm
Width:	382 mm
Height/depth:	96 mm
With bulb:	yes
Socket:	other
Operating device:	LED operating device, current-controlled
Protection class:	I
Protection type (IP):	IP65
Impact resistance:	IK07
Housing color:	gray
Nominal voltage:	240 V
Max. System power:	85 W
Light color:	white
With control gear:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	aluminum
Mounting type:	pendant
With protective cover:	no
Reflector material:	without reflector
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge phase control:	no
Dimming leading edge phase control:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Beam angle:	wide beam 41-80°
Rated service life L70/B10 at 25 °C:	50000 h
Rated service life L80/B10 at 25 °C:	30000 h
Rated service life L90/B10 at 25 °C:	15000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	40 °C
Suitable for lamp power:	85 W
Power factor:	0.9
Outer diameter:	379 mm
Installation height/depth:	96 mm
Type of Wiring:	Termination
Number of poles:	3
Conductor cross-section:	7.5 mm
Connection type:	Plug terminal

Characteristics

Rated service life L90/B10 at 25 °C15000 h

Rated service life L70/B10 at 25 °C50000 h

HABBY120P G3 LED105S/865 PIR WB GR

Manufacturer

HAN31717500

GTIN8710163317175

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter379 mm

Rated lifetime L80/B10 at 25 °C30000 hours

Rated luminous flux according to IEC 62722-2-110500lm

Rated ambient temperature according to IEC62722-2-140°C

Operating deviceLED control gear current controlled

Width382 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth96 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for lamp power85W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth96 mm

Power factor0.9

Conductor cross-section7.5 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Length379 mm

Max. system performance85W

With operating deviceYes

With light sourceYes

With protective coverNo

Mounting typePendulum

Nominal voltage240V

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK07

Protection classI

Voltage typeAC

Housing materialAluminum
