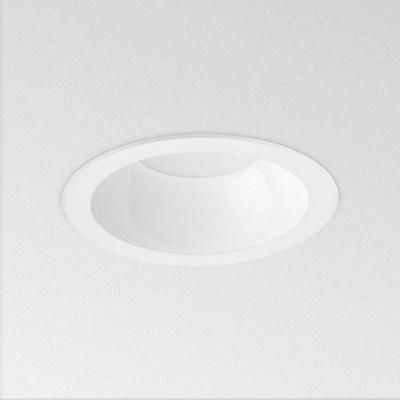

Philips 32581100 DN140B LED10S 840 PSU WR PI6 LED recessed ceiling spotlight

Philips 32581100 DN140B LED10S 840 PSU WR PI6 LED recessed ceiling spotlight

In stock

SKU: 734180

Price on request

€45.85

€0

Overview

Delivers on the CoreLine promise - innovative, easy to install and high quality.The CoreLine downlight is a recessed luminaire that can be used instead of downlights with compact fluorescent lamps. Their low total cost of ownership makes it easier for customers to switch to LED. These luminaires create a natural lighting effect for general lighting applications. In addition, they enable immediate energy savings and have a significantly longer lifespan, making them an inexpensive and environmentally friendly solution. Thanks to their standard cut-out dimensions and quick-connectors, they can be installed quickly and easily. Optionally available as an Interact Ready version - with ZigBee wireless technology for networking luminaires, lamps and sensors.

Property	Value
Max. System power:	9.5 W
Rated luminous flux according to IEC 62722-2-1:	1100 lm
Color temperature:	4000 K
Nominal voltage:	240 V
Protection class (IP):	IP20
Socket:	without
With control gear:	yes
Beam angle:	wide beam 41-80°
Housing material:	aluminum
With Light source:	yes
Housing color:	multicolored
Installation height/depth:	200 mm
Installation diameter:	155 mm
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	32000 h
Height/depth:	100 mm
Protection class:	I
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK02
Light source:	LED not replaceable
Outer diameter:	162 mm
Luminaire with limited surface temperature 'D-mark':	no
With motion detector:	no
Reflector:	white
Suitable for number of lamps:	1
Luminous flux:	1100 lm
Cover material:	without
Covering the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for wall mounting:	no
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for recessed mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	125 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.2
Rated service life L70/B10 at 25 °C:	46000 h
Rated service life L70/B50 at 25 °C:	50000 h
Rated service life L80/B50 at 25 °C:	35000 h
Rated service life L90/B10 at 25 °C:	16500 h
Rated service life L90/B50 at 25 °C:	18000 h
Rated ambient temperature according to IEC62722-2-1:	40 °C
Lamp luminous efficacy:	116 lm/W
Luminous intensity:	620 cd
Type of wiring:	suitable for through wiring
Power factor:	0.95
Number of poles:	2
Conductor cross-section:	0.75 mm
Connectable Conductor cross-section:	1.5 mm
Connection type:	Flat plug
Luminous efficacy:	115 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM5

Characteristics

Rated service life L90/B10 at 25 °C16500 h

Connectable conductor cross-section1.5 mm

Rated service life L70/B10 at 25 °C46000 h

Rated service life L80/B50 at 25 °C35000 h

HABDN140B LED10S 840 PSU WR PI6

Manufacturer

HAN32581100

GTIN8710163325811

Covering the luminaire with thermal insulation material possibleNo

Connection typeFlat plug

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Outer diameter162 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated lifetime L80/B10 at 25 °C32000 hours

Rated luminous flux according to IEC 62722-2-11100lm

Rated ambient temperature according to IEC62722-2-140°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation diameter155 mm

Installation height/depth200 mm

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorMulticolored

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth100 mm

LED nominal current at constant current125mA

Lamp luminous efficacy116lm/W

Power factor0.95

Conductor cross-section0.75 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy115lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1100lm

Light intensity620 cd

Light distributorReflector

Light distributionSymmetrical

Max. system performance9.5W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage240V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorWhite

Impact resistanceIK02

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialWithout

Housing materialAluminum
