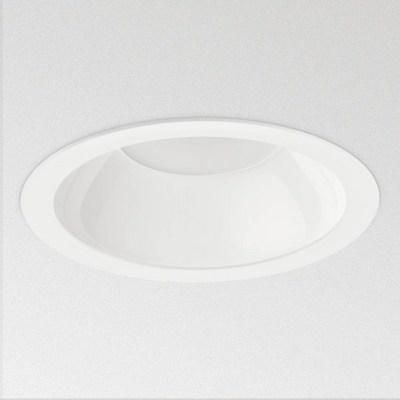

Philips 32612200 DN140B LED20S/830 WR IA1 LED recessed ceiling spotlight

Philips 32612200 DN140B LED20S/830 WR IA1 LED recessed ceiling spotlight

In stock

SKU: 734192

Price on request

€139.17

€0

Overview

Delivers on the CoreLine promise - innovative, easy to install and high quality.The CoreLine downlight is a recessed luminaire that can be used instead of downlights with compact fluorescent lamps. Their low total cost of ownership makes it easier for customers to switch to LED. These luminaires create a natural lighting effect for general lighting applications. In addition, they enable immediate energy savings and have a significantly longer lifespan, making them an inexpensive and environmentally friendly solution. Thanks to their standard cut-out dimensions and quick-connectors, they can be installed quickly and easily. Optionally available as an Interact Ready version - with ZigBee wireless technology for networking luminaires, lamps and sensors.

Property	Value
Max. System power:	22 W
Rated luminous flux according to IEC 62722-2-1:	2200 lm
Color temperature:	3000 K
Nominal voltage:	240 V
Protection class (IP):	IP20
Socket:	without
With control gear:	yes
Beam angle:	wide beam 41-80°
Housing material:	aluminum
With light source:	yes
Housing color:	multicolored
Installation height/depth:	200 mm
Installation diameter:	205 mm
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	33000 h
Height/depth:	108 mm
Protection class:	I
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK02
Light source:	LED not replaceable
Outer diameter:	216 mm
Luminaire with limited surface temperature 'D-mark':	no
With motion detector:	no
Reflector:	white
Suitable for number of lamps:	1
Luminous flux:	2200 lm
Cover material:	without
Covering the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for wall mounting:	no
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	no
Suitable for recessed mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	132.5 mA
Dimming depending on operating device:	yes
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	yes
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Reflector
Light emission:	direct
Total harmonic distortion (THD):	0.2
Rated service life L70/B10 at 25 °C:	47000 h
Rated service life L70/B50 at 25 °C:	50000 h
Rated service life L80/B50 at 25 °C:	35000 h
Rated service life L90/B10 at 25 °C:	17500 h
Rated service life L90/B50 at 25 °C:	18500 h
Rated ambient temperature according to IEC62722-2-1:	40 °C
Lamp luminous efficacy:	100 lm/W
Luminous intensity:	1170 cd
Type of wiring:	suitable for through wiring
Power factor:	0.90
Number of poles:	2
Conductor cross-section:	0.75 mm
Connectable Conductor cross-section:	1.5 mm
Connection type:	Flat plug
Luminous efficacy:	108 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM5

Characteristics

Rated service life L90/B10 at 25 °C17500 h

Connectable conductor cross-section1.5 mm

Rated service life L70/B10 at 25 °C47000 h

Rated service life L80/B50 at 25 °C35000 h

HABDN140B LED20S/830 WR IA1

Manufacturer

HAN32612200

GTIN8710163326122

Covering the luminaire with thermal insulation material possibleNo

Connection typeFlat plug

Type of wiringSuitable for through wiring

Beam angleWide beam 41-80°

Outer diameter216 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated lifetime L80/B10 at 25 °C33000 hours

Rated luminous flux according to IEC 62722-2-12200lm

Rated ambient temperature according to IEC62722-2-140°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearYes

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableYes

Installation diameter205 mm

Installation height/depth200 mm

Color temperature3000K

Color rendering index CRI80-89

VersionWithout

Suitable for surface mountingNo

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for clamp mountingNo

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorMulticolored

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth108 mm

LED nominal current at constant current132.5mA

Lamp luminous efficacy100lm/W

Power factor0.90

Conductor cross-section0.75 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy108lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2200lm

Light intensity1170 cd

Light distributorReflector

Light distributionSymmetrical

Max. system performance22W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage240V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorWhite

Impact resistanceIK02

Protection classI

Voltage typeAC

AdjustabilityNot adjustable

Cover materialWithout

Housing materialAluminum
