Philips 33470700 RC132V LED43S 840 PSD W60L60 OC LED recessed light

Philips 33470700 RC132V LED43S 840 PSD W60L60 OC LED recessed light

In stock

SKU: 734211

Price on request

€252.45

€0

Overview

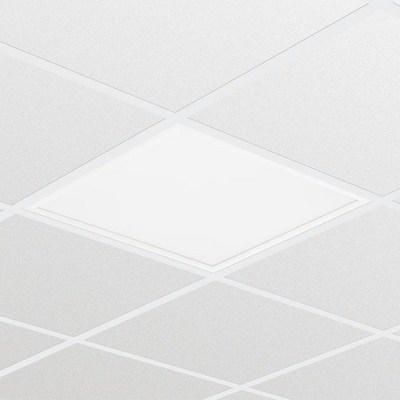

In new and renovated buildings, panel lights with a wide beam are often used. They provide high-quality lighting and save considerable energy and maintenance costs thanks to their high efficiency and service life. CoreLine Panel is available in two versions: a panel suitable for computer workstations (CDP) with integrated, wide-beam micro optics and an opal panel (NOC). The new CoreLine Panel LED inlay lights can also be used as a replacement for conventional fluorescent lamps. They are quick and easy to install. The CDP-compatible lights can also be converted to a direct-beam pendant light with an optional suspension set.

Property	Value
Length:	597 mm
Max. System power:	37 W
Rated luminous flux according to IEC 62722-2-1:	4300 lm
Color temperature:	4000 K
Socket:	other
Housing color:	white
Beam angle:	extremely wide beam >,80°
Height/depth:	42 mm
Installation width:	597 mm
Light emission:	direct
Light distribution:	symmetrical
Light source:	LED not replaceable
With light sensor:	no
Protection type (IP):	IP20
Protection class:	II
Width:	597 mm
Installation height/depth:	120 mm
With motion detector:	no
Operating device:	LED operating device, current-controlled
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	no
Suitable for recessed mounting:	yes
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	597 mm
Light color:	white
Type of voltage:	AC
With operating device:	yes
Material of the housing:	aluminum
Cover material:	Opal plastic
Design of the grid:	without
Nominal voltage:	240 V
Covering of the luminaire with thermal insulation material possible:	no
Suitable for computer workstations in accordance with EN 12464-1:	yes
With light source:	yes
Rated ambient temperature in accordance with IEC62722-2-1:	40 °C
Connection type:	Plug-in terminal
Color rendering index CRI:	80-89
Impact resistance:	IK02
DMX dimming:	no
Luminaire with limited surface temperature 'D-mark':	no
DSI dimming:	no
Energy efficiency class of the permanently installed lamp:	D
LineSwitch dimming:	no
With air slots:	no
Potentiometer dimming (integrated in the device):	no
GPRS dimming:	no
LED nominal current at constant current:	59.4 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	yes
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	yes
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depending on operating device:	no
Without dimming function:	no
Light distributor:	Diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:	55000 h
Rated service life L80/B50 at 25 °C:	35000 h
Rated service life L90/B50 at 25 °C:	15000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	116 lm/W
Power factor:	0.9
Type of wiring:	suitable for through wiring
Number of poles:	6
Conductor cross-section:	0.75 mm

Characteristics

Energy efficiency class of the permanently installed light sourceD

Rated service life L80/B50 at 25 °C35000 h

HABRC132V LED43S 840 PSD W60L60 OC

Manufacturer

HAN33470700

GTIN8710163334707

Covering the luminaire with thermal insulation material possibleNo

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleExtremely wide beam >80°

Rated lifetime L70/B50 at 25 °C55000 hours

Rated luminous flux according to IEC 62722-2-14300lm

Rated ambient temperature according to IEC62722-2-140°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Width597 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimYes

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width597 mm

Installation height/depth120 mm

Installation length597 mm

Color temperature4000K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth42 mm

LED nominal current at constant current59.4mA

Power factor0.9

Conductor cross-section0.75 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy116lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length597 mm

Max. system performance37W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage240V

Without dimming functionNo

Number of poles6

Impact resistanceIK02

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialAluminum
