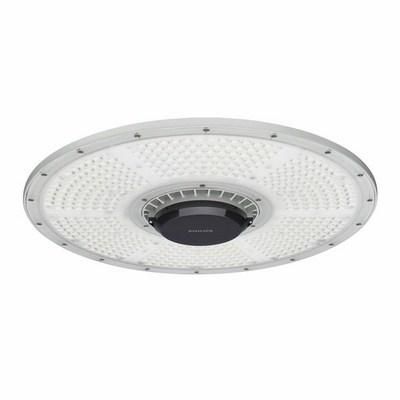

Philips 33565000 BY121P G4 LED200 860 PSU NB LED high bay light

Philips 33565000 BY121P G4 LED200 860 PSU NB LED high bay light

In stock

SKU: 734213

Price on request

€424.96

€0

Overview

Fulfills the CoreLine promise - innovative, easy to install and high quality. Following the success of the previous generation, an upgrade to a new generation has achieved significant improvements in efficiency with the new innovative design. With up to 145lm/W and a service life of 50,000 hours (L80), the total cost of ownership is further optimized. The compact and robust LED high bay luminaire made of aluminum is available in three sizes with 10,000/20,000/25,000 lumens. This makes it the ideal replacement for conventional high bay luminaires with 250W/400W high pressure discharge lamps. The rotationally symmetrical luminaire with single-point suspension is also smaller and lighter than conventional luminaires, which makes it very easy to handle. A pre-assembled industrial plug enables easy installation and the special lens optics ensure outstanding light distribution in two beam angles (WB/NB). The CoreLine Highbay meets IFS/HACCP requirements for the food industry. Optional DALI dimming is still available, resulting in further savings.

Property	Value
Suitable for number of lamps:	1
Lamp:	LED not replaceable
Color temperature:	6500 K
Rated luminous flux according to IEC 62722-2-1:	20000 lm
Height/depth:	95 mm
With lamp:	yes
Socket:	without
Operating device:	LED operating device current-controlled
Protection class:	I
Protection type (IP):	IP65
Impact resistance:	IK07
Housing colour:	grey
Nominal voltage:	240 V
Max. System power:	138 W
Light color:	white
With control gear:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Housing material:	aluminum
Mounting type:	pendicular
With protective cover:	no
Reflector material:	without reflector
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	80 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Beam angle:	wide beam 41-80°
Energy efficiency class of the built-in lamp:	C
Rated service life L70/B50 at 25 °C:	70000 h
Rated service life L80/B50 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	35 °C
Suitable for lamp power:	- W,- W
Power factor:	0.95
Outer diameter:	450 mm
Installation height/depth:	95 mm
Wiring type:	Termination
Number of poles:	3
Conductor cross-section:	1 mm
Connection type:	Plug terminal

Characteristics

Energy efficiency class of the permanently installed light sourceC

Rated service life L80/B50 at 25 °C50000 h

HABBY121P G4 LED200 860 PSU NB

Manufacturer

HAN33565000

GTIN8710163335650

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter450 mm

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-120000lm

Rated ambient temperature according to IEC62722-2-135°C

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth95 mm

Color temperature6500K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power- W,- W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth95 mm

LED nominal current at constant current80mA

Power factor0.95

Conductor cross-section1 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Max. system performance138W

With operating deviceYes

With light sourceYes

With protective coverNo

Mounting typePendulum

Nominal voltage240V

Without dimming functionYes

Number of poles3

ReflectorWithout

Impact resistanceIK07

Protection classI

Voltage typeAC

Housing materialAluminum
