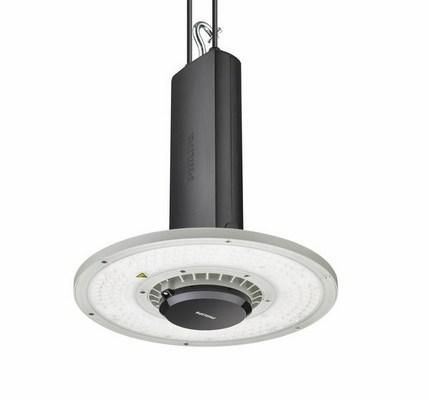

Philips 33704300 BY120P G4 LED100 860 PSD NB LED high bay light

Philips 33704300 BY120P G4 LED100 860 PSD NB LED high bay light

In stock

SKU: 734230

Price on request

€279.51

€0

Overview

Fulfills the CoreLine promise - innovative, easy to install and high quality. After the successful launch of the CoreLine LED hall light in 2013, it has now been completely redesigned in its 3rd generation. The further improvement in efficiency enables a further reduction in operating costs. The light offers customers all the advantages of LED lighting - 'fresh' light quality, a very long service life and reduced power consumption and maintenance effort - from a proven manufacturer. At the same time, it offers clear advantages for the installer: The compact, robust CoreLine LED hall light can be used both in new systems and as an optimal replacement in many renovation projects instead of existing conventional hall lights with 250W/400W high-pressure discharge lamps. The electrical connection is uncomplicated: the light does not need to be opened for installation or maintenance work. In addition, it is up to 60% lighter than other LED and conventional hall lights and is therefore very easy to install.

Property	Value
Suitable for number of lamps:	1
Lamp:	LED not replaceable
Color temperature:	6500 K
Rated luminous flux according to IEC 62722-2-1:	10000 lm
Height/depth:	445 mm
With lamp:	yes
Socket:	without
Operating device:	LED operating device, current-controlled
Protection class:	I
Protection type (IP):	IP65
Impact resistance:	IK07
Housing colour:	grey
Nominal voltage:	240 V
Max. System power:	73 W
Light color:	white
With control gear:	yes
Voltage type:	AC
Suitable for emergency lighting:	no
Material of the housing:	aluminium
Mounting type:	pendant
With protective cover:	no
Material of the reflector:	without reflector
Reflector:	without
Ball-proof:	no
Luminaire with limited surface temperature 'D-mark':	no
Color rendering index CRI:	80-89
Light distribution:	symmetrical
Suitable for secondary lamps:	no
LED nominal current at constant current:	80 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	yes
Dimming DMX:	no
Dimming DSI:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming potentiometer (integrated in the device):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Focus lens
Beam angle:	wide beam 41-80°
Energy efficiency class of the built-in lamp:	D
Rated service life L70/B50 at 25 °C:	70000 h
Rated service life L80/B50 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Rated ambient temperature according to IEC62722-2-1:	35 °C
Suitable for lamp power:	- W,- W
Power factor:	0.95
Outer diameter:	385 mm
Installation height/depth:	445 mm
Wiring type:	Termination
Number of poles:	3
Conductor cross-section:	1 mm
Connection type:	Plug terminal

Characteristics

Energy efficiency class of the permanently installed light sourceD

Rated service life L80/B50 at 25 °C50000 h

HABBY120P G4 LED100 860 PSD NB

Manufacturer

HAN33704300

GTIN8710163337043

Connection typePlug-in terminal

Type of wiringDiploma

Beam angleWide beam 41-80°

Outer diameter385 mm

Rated lifetime L70/B50 at 25 °C70000 hours

Rated luminous flux according to IEC 62722-2-110000lm

Rated ambient temperature according to IEC62722-2-135°C

Operating deviceLED control gear current controlled

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth445 mm

Color temperature6500K

Color rendering index CRI80-89

VersionWithout

Suitable for lamp power- W,- W

Suitable for number of lamps1

Suitable for emergency lightingNo

Housing colorGray

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth445 mm

LED nominal current at constant current80mA

Power factor0.95

Conductor cross-section1 mm

Luminaire with limited surface temperature D-markNo

LampsLED not replaceable

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Max. system performance73W

With operating deviceYes

With light sourceYes

With protective coverNo

Mounting typePendulum

Nominal voltage240V

Without dimming functionNo

Number of poles3

ReflectorWithout

Impact resistanceIK07

Protection classI

Voltage typeAC

Housing materialAluminum
