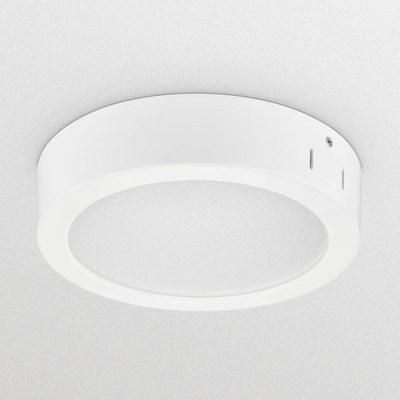

Philips 33953599 DN145C LED20S/830 PSU II WH LED recessed ceiling spotlight

Philips 33953599 DN145C LED20S/830 PSU II WH LED recessed ceiling spotlight

In stock

SKU: 734260

Price on request

€45.28

€0

Overview

Fulfills the CoreLine promise - innovative, easy to install and high quality.The CoreLine Slim downlight family is available as a built-in and surface-mounted version and offers a 1:1 replacement for conventional downlights with compact fluorescent lamps. Thanks to their compact dimensions, these products can also be used in very low ceilings. The high efficiency and very long service life of 50,000 hours (L70) have a positive effect on operating costs. This downlight family ensures a very high-quality appearance in the ceiling thanks to the evenly illuminated surface. The lights fit into standard ceiling cutouts of 68, 150 or 200mm and can be installed quickly and easily.

Property	Value
Max. System power:	23.1 W
Rated luminous flux according to IEC 62722-2-1:	2100 lm
Color temperature:	3120 K
Nominal voltage:	240 V
Protection class (IP):	IP44
Suitable for lamp power:	23.1 W
Socket:	other
With control gear:	yes
Beam angle:	free beam/diffuse
Material of Housing:	Aluminum
With light source:	yes
Housing color:	white
Installation height/depth:	28 mm
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Rated service life L80/B10 at 25 °C:	34000 h
Height/depth:	50 mm
Protection class:	II
Light distribution:	symmetrical
Operating device:	LED operating device, current-controlled
Impact resistance:	IK02
Light source:	LED not replaceable
Outer diameter:	217 mm
Luminaire with limited surface temperature 'D-mark':	no
With motion detector:	no
Reflector:	without
Suitable for number of light sources:	1
Luminous flux:	2310 lm
Cover material:	Opal plastic
Covering the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for wall mounting:	no
Suitable for track mounting:	no
Adjustability:	not adjustable
Suitable for clamp mounting:	yes
Suitable for pendulum suspension:	no
Suitable for pedestal/floor mounting:	no
Suitable for Traverse mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for recessed mounting:	no
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
LED nominal current at constant current:	48.3 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (device-integrated):	no
Dimming GPRS:	no
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Light emission:	direct
Energy efficiency class of the built-in lamp:	E
Total harmonic distortion (THD):	0.2
Rated service life L70/B10 at 25 °C:	55000 h
Rated service life L70/B50 at 25 °C:	50000 h
Rated service life L80/B50 at 25 °C:	35000 h
Rated service life L90/B10 at 25 °C:	16000 h
Rated service life L90/B50 at 25 °C:	16000 h
Rated ambient temperature according to IEC62722-2-1:	35 °C
Luminous intensity:	1074.914 cd
Type of wiring:	Termination
Power factor:	0.9
Number of poles:	2
Conductor cross-section:	0.75 mm
Connectable conductor cross-section:	1.5 mm
Connection type:	other
Luminous efficacy:	100 lm/W
Suitable for computer workstations in accordance with EN 12464-1:	no
Glow wire test in accordance with IEC 60695-2-11:	650 °C - 30 s
Photobiological safety in accordance with EN 62471:	RG0
Color consistency (McAdam ellipse):	SDCM3

Characteristics

Energy efficiency class of the permanently installed light sourceE

Rated service life L90/B10 at 25 °C16000 h

Connectable conductor cross-section1.5 mm

Rated service life L70/B10 at 25 °C55000 h

Rated service life L80/B50 at 25 °C35000 h

HABDN145C LED20S/830 PSU II WH

Manufacturer

HAN33953599

GTIN8710163339535

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Beam angleFree-radiating/diffuse

Outer diameter217 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated lifetime L80/B10 at 25 °C34000 hours

Rated luminous flux according to IEC 62722-2-12100lm

Rated ambient temperature according to IEC62722-2-135°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation height/depth28 mm

Color temperature3120K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for clamp mountingYes

Suitable for lamp power23.1W

Suitable for number of lamps1

Suitable for pendulum suspensionNo

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Suitable for wall mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth50 mm

LED nominal current at constant current48.3mA

Power factor0.9

Conductor cross-section0.75 mm

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy100lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2310lm

Light intensity1074,914 cds

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Max. system performance23.1W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage240V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles2

ReflectorWithout

Impact resistanceIK02

Protection classII

Voltage typeAC

AdjustabilityNot adjustable

Cover materialPlastic opal

Housing materialAluminum
