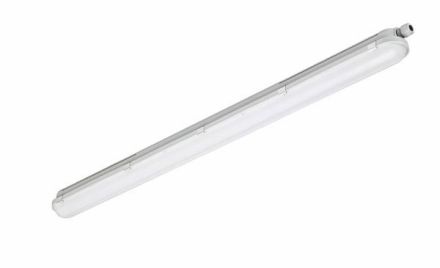

Philips 34979499 WT120C G2 37S/840 PSU PCO L1200 LED waterproof luminaire

Philips 34979499 WT120C G2 37S/840 PSU PCO L1200 LED waterproof luminaire

In stock

SKU: 734278

Price on request

€41.64

€0

Overview

Delivers on the CoreLine promise - Innovative, easy to install and high quality.The luminaires can replace traditional fluorescent luminaires from 18W to 58W. With its sleek and more modern design, it still retains its familiar and appreciated architecture. Installation is quick and easy thanks to the thoughtful design. The CoreLine waterproof luminaire offers better light distribution for simple and effective lighting. Interact Ready luminaires with integrated wireless lighting control are also available in this range and can be used with Interact gateways, sensors and software.

Property	Value
Length:	1215 mm
Suitable for number of bulbs:	1
Max. System power:	31.460000000000004 W
Rated luminous flux according to IEC 62722-2-1:	3700 lm
Color temperature:	4102 K
Socket:	other
Housing color:	grey
Beam angle:	unshielded/diffuse
Height/depth:	76 mm
Light emission:	direct
Light distribution:	symmetrical
Light source:	LED not replaceable
With light sensor:	no
Protection class (IP) :	IP65
Protection class:	I
Width:	1215 mm
With motion detector:	no
Operating device:	LED operating device current-controlled
Suitable for ceiling mounting:	yes
Suitable for Wall mounting:	yes
Suitable for recessed mounting:	no
Suitable for strip light configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Light color:	white
Voltage type:	AC
With operating device:	yes
Housing material:	plastic
Cover material:	plastic opal
Design of the grid:	without
Nominal voltage:	240 V
Covering of the lamp with thermal insulation material possible:	yes
Suitable for computer workstations according to EN 12464-1:	no
With light source:	yes
Rated ambient temperature according to IEC62722-2-1:	40 °C
Connection type:	Plug-in terminal
Color rendering index CRI:	80-89
Impact resistance:	IK08
Dimming DMX:	no
Luminaire with limited surface temperature 'D-mark':	yes
Dimming DSI:	no
Energy efficiency class of the built-in lamp:	D
Dimming LineSwitch:	no
With air slots:	no
Dimming Potentiometer (integrated in device):	no
Dimming GPRS:	no
LED nominal current at constant current:	378 mA
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming dependent on operating device:	no
Without dimming function:	yes
Light distributor:	Diffuser lens/optics/panel
Rated service life L70/B10 at 25 °C:	57000 h
Rated service life L70/B50 at 25 °C:	57000 h
Rated service life L80/B10 at 25 °C:	35000 h
Rated service life L80/B50 at 25 °C:	47000 h
Rated service life L90/B10 at 25 °C:	16000 h
Rated service life L90/B50 at 25 °C:	22000 h
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Luminaire luminous efficacy:	130 lm/W
Power factor:	0.9
Wiring type:	Termination
Number of poles:	3
Conductor cross-section:	0.5 mm

Characteristics

Energy efficiency class of the permanently installed light sourceD

Rated service life L90/B10 at 25 °C16000 h

Rated service life L70/B10 at 25 °C57000 h

Rated service life L80/B50 at 25 °C47000 h

HABWT120C G2 37S/840 PSU PCO L1200

Manufacturer

HAN34979499

GTIN8710163349794

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Rated lifetime L70/B50 at 25 °C57000 hours

Rated lifetime L80/B10 at 25 °C35000 hours

Rated luminous flux according to IEC 62722-2-13700lm

Rated ambient temperature according to IEC62722-2-140°C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width1215 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4102 K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Suitable for wall mountingYes

Housing colorGray

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth76 mm

LED nominal current at constant current378mA

Power factor0.9

Conductor cross-section0.5 mm

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy130lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1215 mm

Max. system performance31.460000000000004W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage240V

Without dimming functionYes

Number of poles3

Impact resistanceIK08

Protection classI

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
