Philips 36054600 RC132V G4LED34_43S/830_840 PSU W60L60 OC LED recessed light

Philips 36054600 RC132V G4LED34_43S/830_840 PSU W60L60 OC LED recessed light

In stock

SKU: 734304

Price on request

€126.74

€0

Overview

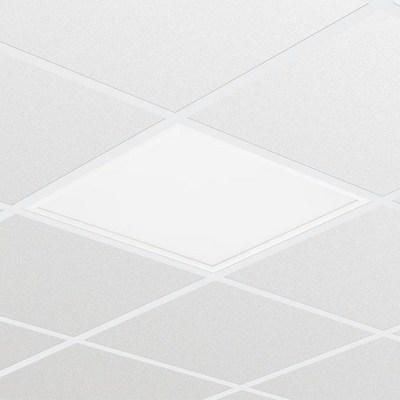

Fulfills the CoreLine promise - innovative, easy to install and high quality. In new and renovated buildings, panel lights with a wide beam are often used, which provide high-quality lighting and save considerable energy and maintenance costs thanks to their high efficiency and service life. CoreLine Panel is available in two versions: a panel suitable for computer workstations (BAP-compatible) (OC) with integrated, wide-beam micro optics and an opal panel (NOC). The new CoreLine Panel LED insert lights can also be used as a replacement for conventional fluorescent lamps. They can be installed quickly and easily. The BAP-compatible lights can also be converted to a direct-beam pendant light with an optional suspension set.

Property	Value
System power:	29 W
Luminous flux:	3400.43 lm
Length:	595 mm
Width:	595 mm
Height/depth:	11 mm
Protection rating (IP):	IP20
Protection class:	II
Luminaire with limited surface temperature D-mark according to EN 60598-2-24:	no
Nominal voltage:	220 to 240 V
Housing colour:	white
Housing material:	steel
Colour temperature:	3000 to 4000 K
Impact resistance:	IK03
Colour rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	free beam/diffuse
With Light source:	yes
Light source:	LED not replaceable
Temperature:	10 to 40 °C
Socket:	other
Connection type:	other
With control gear:	yes
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Installation height/depth:	11 mm
Without Dimming function:	no
Installation width:	595 mm
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	LED operating device, current-controlled
Suitable for recessed mounting:	yes
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	yes
Suitable for light strip configuration:	no
Suitable for Pendant suspension:	yes
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	595 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Luminaire luminous efficacy:	117 lm/W
Power factor:	0.9
Type of wiring:	Termination
Number of poles:	2
Conductor cross-section:	0.75 mm²
Surface protection housing:	other
Nominal current:	700 mA
Replaceable operating device:	no
DALI-2 dimming:	no
Color consistency (McAdam ellipse):	SDCM3
Luminous flux maintenance for average service life of 50,000 h at 25 °C ambient temp.:	0.05 %
Failure rate for average service life of 50,000 h at 25 °C ambient temp. (tq):	0.05 %
Max. number of luminaires circuit breaker B16:	24
Max. Number of lights circuit breaker C16:	40
Integrated emergency power supply:	no
Flicker value Pst LM:	1
Stroboscopic effect value SVM:	1.6
Constant luminous flux control:	no
Total harmonic distortion (THD):	0.2
Photobiological safety according to EN 62471:	RG0
Glare limitation (UGR):	19
Adjustable color temperature:	Levels
Luminous flux adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Total harmonic distortion (THD)0.2

Stroboscopic effect value SVM1.6

Flicker value Pst LM1

HABRC132V G4LED34_43S/830_840 PSU W60L60 OC

Manufacturer

HAN36054600

GTIN8710163360546

Covering the luminaire with thermal insulation material possibleNo

Connection typeOther

Type of wiringDiploma

Execution of the gridWithout

Beam angleFree-radiating/diffuse

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1Yes

Glare limitation (UGR)19

Width595 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation width595 mm

Installation height/depth11 mm

Installation length595 mm

Color consistency (McAdam ellipse)SDCM3

Color temperature3000 to 4000 K

Color temperature adjustableStages

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingYes

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionYes

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth11 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Conductor cross-section0.75 mm²

Luminaire with limited surface temperature D-mark according to EN 60598-2-24No

Luminaire luminous efficacy117lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux3400.43lm

Luminous flux adjustableNo

Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.0.05 %

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length595 mm

Max. number of luminaires Circuit breaker B1624

Max. number of luminaires Circuit breaker C1640

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

With air slotsNo

Nominal voltage220 to 240 V

Rated current700mA

Emergency power supply integratedNo

Surface protection housingOther

Without dimming functionNo

Photobiological safety according to EN 62471RG0

Number of poles2

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage typeAC

System performance29 W

Temperature10 to 40 °C

Cover materialPlastic opal

Housing materialSteel
