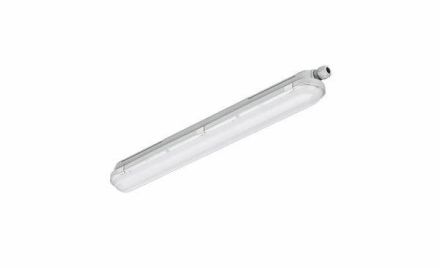

Philips 36933499 WT120C G2 LED40S/865 PSU L1200 LED waterproof luminaire

Philips 36933499 WT120C G2 LED40S/865 PSU L1200 LED waterproof luminaire

In stock

SKU: 734338

Price on request

€78.66

€0

Overview

L1200 mm, polycarbonate, grey, power supply (on/off), 4000 lm, 28.5 W, 140 lm/W, 6500 K, (0.31,0.32)SDCM=3, wide beam (WB), matt, polycarbonate, protection against dust ingress, jet water protected, 5 J vandalism resistant, protection class I, quick connector, 3-pin

Property	Value
Rated luminous flux according to IEC 62722-2-1:	4000 lm
Color temperature:	6500 K
Color rendering index CRI:	80-89
Color consistency (McAdam ellipse):	SDCM3
Protection class (IP):	IP65
Impact resistance:	IK08
Protection class:	I
Rated ambient temperature according to IEC62722-2-1:	20 - 40 °C
Length:	1215 mm
Width:	80 mm
Height/Depth:	76 mm
Voltage type:	AC
Nominal voltage:	220 - 240 V
Max. System power:	28.5 W
Luminaire luminous efficacy:	140 lm/W
Power factor:	0.9
With control gear:	yes
Control gear:	LED control gear current-controlled
Connection type:	Plug-in terminal
Number of poles:	3
Type of wiring:	suitable for through-wiring
With light source:	yes
Light source:	LED not replaceable
Light emission:	direct
Light distribution:	symmetrical
Beam angle:	extremely wide beam >,80°
Light distributor:	diffuser lens/optics/panel
Housing colour:	grey
Housing material:	plastic
Cover material:	plastic, matt/satin
Luminaire with limited surface temperature 'D-mark':	yes
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Suitable for surface mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for pendant suspension:	yes
Total harmonic distortion (THD):	20
Photobiological safety according to EN 62471:	RG0
Flicker value Pst LM:	1
Stroboscopic effect value SVM:	1.6
Packaging unit:	1
Packaging unit:	9
Packaging unit:	81
Weight:	1.7
Weight unit:	KG
Weight reference quantity:	1
Socket:	other
Conductor cross-section:	0.5 mm²
Design of the grid:	without
Wall mounting:	yes
Cover of the luminaire with thermal insulation material possible:	yes
Suitable for number of lamps:	1
Nominal current:	140 mA
Light colour:	white
Rated service life L70/B50 at 25 °C:	75000 h
Without dimming function:	yes
Glare limitation (UGR):	25
Max. number of lights circuit breaker C16:	60
Max. Number of luminaires with circuit breaker B16:	36
Luminous flux reduction after an average service life of 50,000 hours at an ambient temperature of 25 °C:	80 %
Failure rate after an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq):	5 %
Installation height/depth:	1215 mm
Surface protection housing:	untreated
Brief description:	CoreLine damp-proof luminaire WT120C, 28.5 W, L1200 mm, 4000 lm, 6500 K, wide beam (WB), matt, IP65, IK08, TW1-ready
Energy efficiency class of the light source according to EU Directive 2019/2015:	D

Characteristics

Total harmonic distortion (THD)20

Stroboscopic effect value SVM1.6

Flicker value Pst LM1

Wall mountingYes

HABWT120C G2 LED40S/865 PSU L1200

Manufacturer

HAN36933499

GTIN8710163369334

Covering the luminaire with thermal insulation material possibleYes

Connection typePlug-in terminal

Type of wiringSuitable for through wiring

Execution of the gridWithout

Beam angleExtremely wide beam >80°

Rated lifetime L70/B50 at 25 °C75000 hours

Rated luminous flux according to IEC 62722-2-14000lm

Rated ambient temperature according to IEC62722-2-120 - 40 °C

Operating deviceLED control gear current controlled

Glare limitation (UGR)25

Width80 mm

Installation height/depth1215 mm

Energy efficiency class of the light source according to EU Directive 2019/2015D

Color consistency (McAdam ellipse)SDCM3

Color temperature6500K

Color rendering index CRI80-89

VersionOther

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for number of lamps1

Suitable for pendulum suspensionYes

Housing colorGray

Weight1,7

Weight unit kg

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth76 mm

Short descriptionCoreLine damp-proof luminaire WT120C, 28.5 W, L1200 mm, 4000 lm, 6500 K, wide beam (WB), matt, IP65, IK08, TW1-ready

Power factor0.9

Conductor cross-section0.5 mm²

Luminaire with limited surface temperature D-markYes

Luminaire luminous efficacy140lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionSymmetrical

Length1215 mm

Max. number of luminaires Circuit breaker B1636

Max. number of luminaires Circuit breaker C1660

Max. system performance28.5W

With operating deviceYes

With light sourceYes

Nominal voltage220 - 240V

Rated current140mA

Surface protection housingUntreated

Without dimming functionYes

Photobiological safety according to EN 62471RG0

Number of poles3

Impact resistanceIK08

IP protection)IP65

Protection classI

Voltage typeAC

Packaging Unit1

Cover materialPlastic matt/satin

Housing materialPlastic
