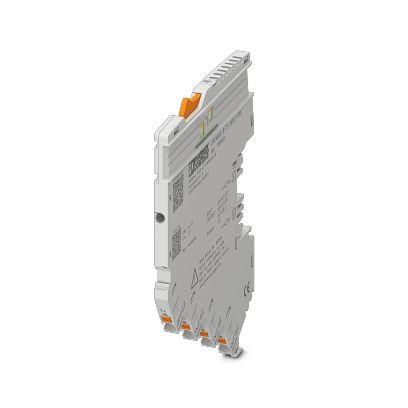

Phoenix Contact 1115649 CAPAROC E1 12-24DC/1-10A Electronic device circuit breaker

In stock

SKU: 927083

Price on request

€46.79

€0

Overview

1-channel electronic device circuit breaker module for protecting consumers at 12 and 24 V DC in the event of overload and short circuit. Nominal current adjustable from 1 A to 10 A via LED button. For installation on DIN rail via CAPAROC busbars.

Property	Value
Flammability class of the insulating material according to UL 94:	other
Number of poles:	1
Width:	6.2 mm
Height:	132.4 mm
Depth:	111.3 mm
Mounting type:	other
Operating voltage:	30 V
Rated current:	10 A
Fuse type:	electronic
Fail-safe element:	15 A
Switch-off time:	4 ms
Max. capacitive load:	0.02 µF
With remote signaling contact:	no
Ambient temperature during operation:	-30 to 65 °C
