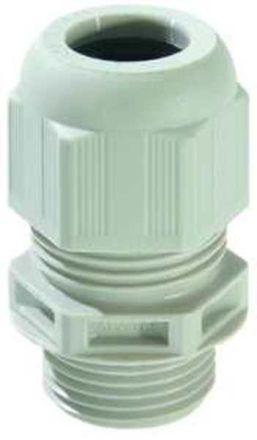

PROTEC.class 05101912 PKVM 40 cable gland M40

In stock
SKU: 548173
€2.78
Into a basketIn the basketGo

Overview

According to DIN EN 62444, protection class according to EN 60529, with integrated sealing lip, M40 - M63 with sealing ring, UV-resistant, silicone-free, operating temperature range: -40°C to +100°C, thread length: - PKVM12, PKVM16 = 9 mm, - PKVM20, PKVM25 = 10 mm, - PKVM32, PKVM40 = 12 mm, - PKVM50 = 14 mm, - PKVM63 = 15 mm,

Property Value
Wrench size: 46 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 40
Suitable for cable diameters: 16 to 28 mm
Protection class (IP): IP68
Operating temperature: -40 to +100 °C
Halogen-free: yes
Thread length: 12 mm
Thread type: metric
Material: Plastic
RAL number: 7035
Material quality: Polyamide (PA)

Characteristics

Nominal thread size metric/PG40
Suitable for cable diameter16 to 28 mm
Wrench size46 mm
HABPKVM40
ManufacturerPROTEC.class
HAN05101912
GTIN4016705119127
Operating temperature-40 to +100 °C
Thread typeMetric
Thread length12 mm
Thread1.5 mm
Halogen freeYes
RAL number7035
IP protection)IP68
MaterialPlastic
Material qualityPolyamide (PA)
PROTEC.class 05101912 PKVM 40 cable gland M40
PROTEC.class 05101912 PKVM 40 cable gland M40
€2.78
Into a basketIn the basketGo
