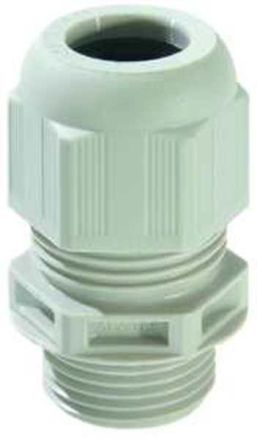

PROTEC.class 05101913 PKVM 50 cable gland M50

In stock
SKU: 548174
€4.57
Into a basketIn the basketGo

Overview

According to DIN EN 62444, protection class according to EN 60529, with integrated sealing lip, M40 - M63 with sealing ring, UV-resistant, silicone-free, operating temperature range: -40°C to +100°C, thread length: - PKVM12, PKVM16 = 9 mm, - PKVM20, PKVM25 = 10 mm, - PKVM32, PKVM40 = 12 mm, - PKVM50 = 14 mm, - PKVM63 = 15 mm,

Property Value
Wrench size: 55 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 50
Suitable for cable diameters: 21 to 35 mm
Protection class (IP): IP68
Operating temperature: -40 to +100 °C
Halogen-free: yes
Thread length: 14 mm
Thread type: metric
Material: Plastic
RAL number: 7035
Material quality: Polyamide (PA)

Characteristics

Nominal thread size metric/PG50
Suitable for cable diameter21 to 35mm
Wrench size55 mm
HABPKVM50
ManufacturerPROTEC.class
HAN05101913
GTIN4016705119134
Operating temperature-40 to +100 °C
Thread typeMetric
Thread length14 mm
Thread1.5 mm
Halogen freeYes
RAL number7035
IP protection)IP68
MaterialPlastic
Material qualityPolyamide (PA)
