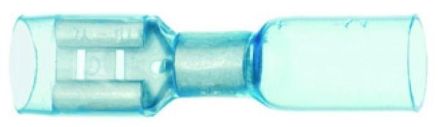

PROTEC.class 05104518 PFSHSSI1525 1.5-2.5qmm flat receptacle

In stock
SKU: 548728
€1.41
Into a basketIn the basketGo

Overview

Brass (CuZn), metallic insulation support Cu-ETP, galv. Sn, two-layer insulation with thermoplastic inner adhesive, after shrinking a watertight connection is created, shrinking temperature: 100°C, dielectric strength: 30kV/mm, tensile strength 27 MPa, expansion: 450%, change in length: max. 10%, gravity (density ratio) 0.95 cm, connector dimensions: flat 6.3x0.8 mm, suitable tool: PCSV crimping pliers

Property Value
Nominal cross section: 1.5 to 2.5 mm²
Connector dimensions: flat 6.3x0.8 mm
Insulation color: blue

Characteristics

Color of the insulationBlue
Plug dimensionsFlat 6.3x0.8 mm
HABPFSHSSI1525 1.5-2.5qmm
Minimal order100 pcs
ManufacturerPROTEC.class
HAN05104518
GTIN4016705145188
Nominal cross section1.5 to 2.5 mm²
