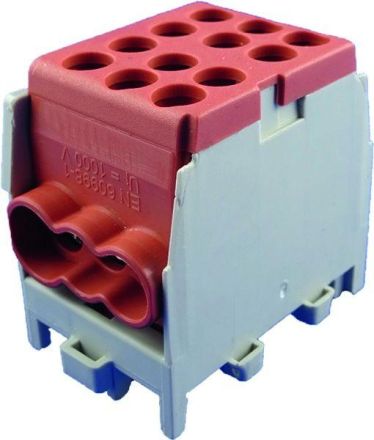

25/16 mm², can be connected in series. Mounting on 35 mm mounting rail in accordance with EN 50022 / EN 60715. e.g. for small installation distribution boards and meter boxes in accordance with 0603. Small installation distribution boards and meter boxes AC 400V. Main line branch terminals 0603-2, connecting material for low-voltage circuits for household and similar purposes 0613, Part 1 / EN 60998-1. Color coding according to valid wire colors. Voltage: 1000 V. Certified. Suitable for solid aluminum conductors. Inputs max. 25 mm²: 2. Outputs max. 16 mm²: 4. Clamp body: brass, (tinned). Clamping screws: steel, galvanized. Insulating housing: plastic, (polyamide) impact-resistant, flame-retardant, halogen-free. Main line 1.5 - 25 mm² rigid/stranded, 2.5 Nm. Branch line: 1.5 - 16 mm² rigid/stranded, 2 Nm. Stripping length 16 mm. Socket terminal with 2 screws per terminal point. Screws with combination slot Pozidriv Z2. IP 20, finger-safe. Rounded corners.
