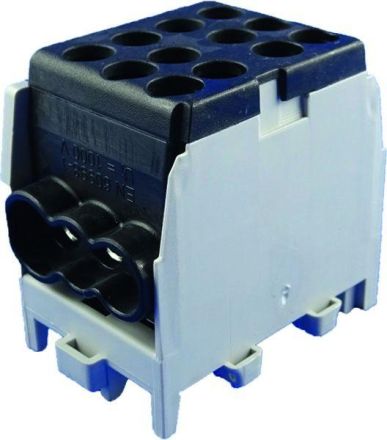

25/16 mm, 1-pole, Can be mounted in series, Mounting on 35 mm mounting rail in accordance with EN 50022 / EN 60715, e.g. for small installation distributors and meter boxes in accordance with0603, Small installation distributors and meter boxes AC 400V, Main line branch terminals0603-2,, Connecting material for low-voltage circuits for household and similar purposes0613, Part 1 / EN 60998-1, Color coding according to valid wire colors, Voltage: 1000 V, validated, Suitable for solid aluminum conductors, Inputs max. 25 mm: 2, Outputs max. 16 mm: 4, Clamp body: Brass, (tinned), Clamping screws: Steel, galvanized, Insulating housing: Plastic, (polyamide) impact-resistant, flame-retardant, halogen-free , main cable 1.5 - 25 mm rigid/stranded, 2.5 Nm , branch cable: 1.5 - 16 mm rigid/stranded, 2 Nm , stripping length 16 mm , socket terminal with 2 screws per terminal point, screws with combination slot Pozidriv Z2 , IP 20, finger-safe , rounded corners
| Property | Value |
| Number of poles: | 1 |
