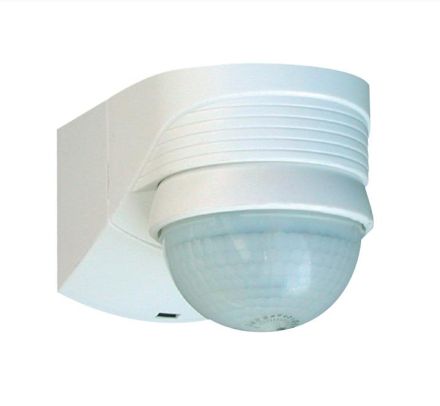

PROTEC.class 05104832 Ceiling motion detector PBM 280 WS 280 degrees white

In stock
SKU: 436435
€90.93
Into a basketIn the basketGo

Overview

Motion detector with downward detection for seamless monitoring, Movable ball head, Easy installation thanks to plug-in base, Detection area can be restricted by cover slats, Special base for outside corner installation included, Additional functions can be set via optional remote control (PBM 280 FB), Voltage: 110 - 240 V AC 50 / 60 Hz, Power consumption: approx. 0.4W, Horizontal detection area: 280°, Range: max. 16 m when walking across the detection direction (tangential), Protection level: IP54 / Class II, Ambient temperature: -25 °C to +50 °C, Material type: Polycarbonate, UV-resistant, Switching capacity channel 1: 2000 W, cos phi = 1 1000 VA, cos phi = 0.5, Time setting: 15 s - 16 min, pulse , Helligkeitswert: 2 - 2000 Lux

Eigenschaft Wert
Tiefe: 148 mm
Breite: 68 mm
Height: 78 mm
Design: Motion detector
Color: white
Material: Plastic
Mounting type: Surface-mounted
Response brightness: 2 to 2000 lx
Protection class (IP): IP54
Voltage type: AC
Max. Range to one side: 16 m
Min. Duty cycle: 15 s
Temperature: -25 to +50 °C
Response brightness adjustable: yes
Response sensitivity adjustable: yes

Characteristics

Response brightness2 to 2000 lx
ManufacturerPROTEC.class
HAN05104832
GTIN4016705148325
Response sensitivity adjustableYes
Response brightness adjustableYes
VersionMotion detector
Width68 mm
ColorWhite
Height78 mm
Max. range to one side16m
Min. duty cycle15s
Mounting typeSurface-mounted
IP protection)IP54
Voltage typeAC
Temperature-25 to +50 °C
Depth148 mm
MaterialPlastic
