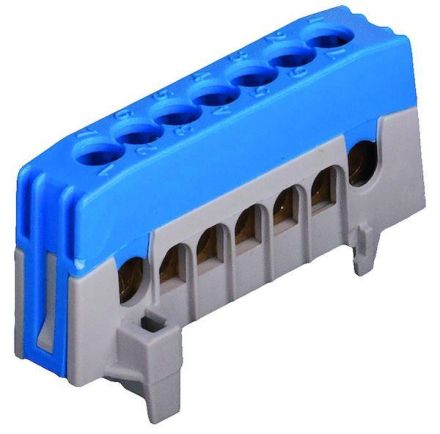

Conductor terminals for mounting on DIN rails, e.g. for small installation distribution boards and meter boxes in accordance with 0603. Terminal points: 7 or 12. Terminal body: brass, cross section 6 mm x 9 mm. Screws: M5, steel, galvanized/passivated (Cr-VI-free). Housing: polyamide, impact-resistant, flame-retardant. Rounded corners. Cable connection: 1 ... 16 mm² rigid, 1 ... 10 mm² fine-wire with wire end ferrule, (round crimp or square crimp, trapezoidal crimp up to 6 mm²). Screw connection, recommended tightening torque 1.2 Nm. Standards/regulations: Connecting material for low-voltage circuits for household and similar purposes 0613, EN 60998. Fastening: On DIN rail in accordance with EN 50022 / EN 60715. Nominal current: 63 A. Insulation voltages: 690 V (distribution and control cabinet installation, pollution degree 2), 500 V (pollution degree 3), Uimp = 6 kV. Contact protection: IP00, type suffix -F2: IP20, finger-safe. Screw terminal. Combined Phillips Z2 (Pozidriv).
